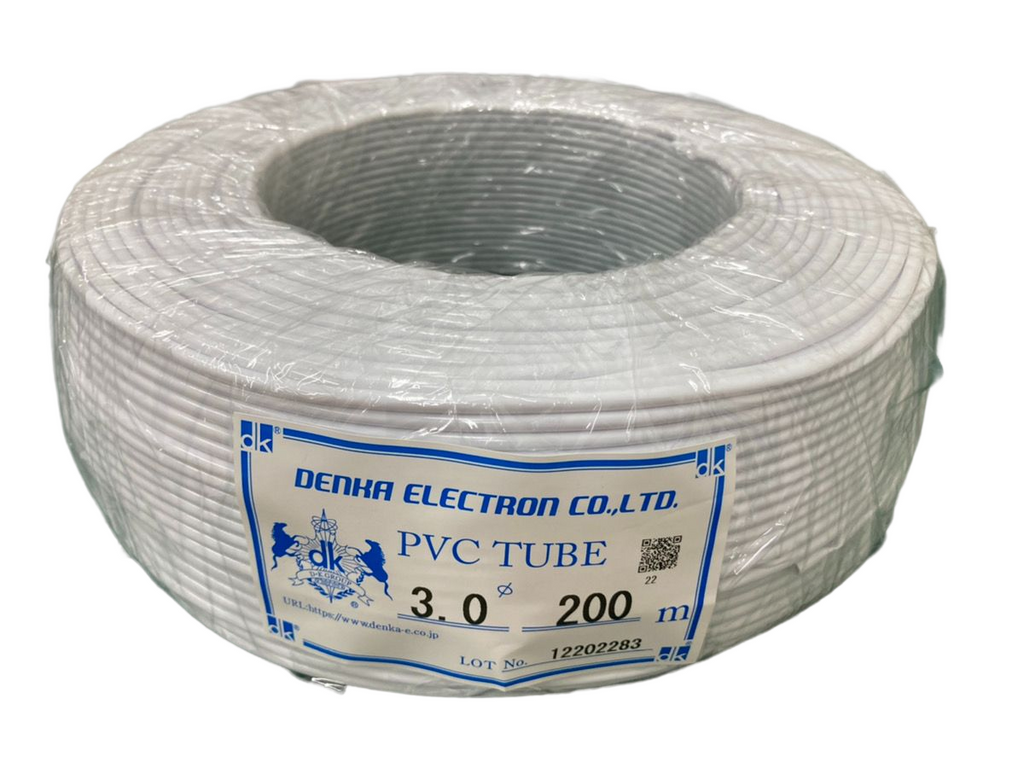

White vinyl tube [TB-W]
White vinyl tube [TB-W]

    White vinyl tube [TB-W]

    $71.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    As of April 21st, TB-2.5W-200, TB-3.4W-200, TB-3.8W-200, and TB-4.0W-200 are out of stock, with a lead time of 2-3 weeks.
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:
    1. Features/Case Studies 2. Download Materials 3. Specifications/Data Characteristics 4. Sizes 5. Price List
    Vinyl Tube White / Vinyl Tube White

    White PVC tube for clear printing and stamping.
    Wide range of sizes available. Conforms to JIS C2410 standard, 300V rated.

    1

    Features/Case Studies

    Clear Printing and Stamping Wiring protection tube that reproduces printing and stamping clearly due to its white color.
    Abundant Sizes Wide range of sizes from 0.8φ to 50φ available. Black, transparent, and other colors (gray, red, blue, yellow, green, brown, etc.) also available.
    JIS C2410 compliant, 300V rated JIS C2410 compliant, rated voltage 300V, equivalent to UL94HB. Dielectric breakdown voltage 2500V or more.
    📊 Case Studies
    Adopting Manufacturer
    Construction Equipment Manufacturer
    Situation Before Adoption
    Since 2024, PVC tubes were used as a protective material for hoses, but part costs were increasing annually due to the rising price of naphtha.
    Effect of Adoption
    Switched to our product. Detailed discussions were held regarding flexibility, gloss, thickness, and packaging shape, resulting in a successful switch that met the customer's desired shape and reduced costs.
    ＊For more detailed case studies and effects, please contact us →
    ■ Sales
    • In-stock items: 1φ~20φ (black, white, transparent)
    • Sizes not listed are made to order
    • Special colors (gray, red, blue, yellow, green, brown, etc.) are also available
    ■ Related Products
    📩 Inquire about this product Request sample/quote
    2

    Download Materials

    📄Catalog (PDF) 📊Product Selection Chart (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-Inclusion Certificates (PDF)
    3

    Specifications/Data Characteristics

    Material PVC
    Standard JIS C2410 compliant
    Operating Temperature Range -20℃ to 60℃
    Rated Voltage 300V
    Flame Retardancy UL94HB equivalent
    Item Test Method Characteristic
    Low Temperature Bending JIS C-2133 12 No cracks on the surface
    Tensile Strength JIS C-2133 13 >10.4 MPa
    Elongation JIS C-2133 13 >100%
    Dielectric Breakdown Voltage JIS C-2133 15.1 2500V or more
    Withstanding Voltage JIS C-2133 15.2 Withstands 2500V for 1 minute
    Oil Resistance JIS K6723 70℃ × 4 hours, 85% or more
    Volume Resistivity JIS C-2133 17 >10¹⁴ Ω・m
    4

    Size List

    Vinyl Tube Size Diagram
    Inner Diameter D(mm) Wall Thickness T(mm) Tolerance Packing Unit (m/roll)
    Inner Diameter Wall Thickness
    0.8 0.4 ±0.1 ±0.08 1000
    1.0 0.4 ±0.1 ±0.08 1000
    1.5 0.4 ±0.1 ±0.08 200
    2.0 0.4 ±0.15 ±0.08 200
    2.5 0.4 ±0.15 ±0.08 200
    2.8 0.45 ±0.15 ±0.08 200
    3.0 0.45 ±0.15 ±0.02 200
    3.2 0.45 ±0.15 ±0.02 200
    3.4 0.45 ±0.15 ±0.02 200
    3.5 0.45 ±0.15 ±0.02 200
    3.6 0.45 ±0.15 ±0.02 200
    3.8 0.45 ±0.15 ±0.02 200
    4.0 0.45 ±0.15 ±0.02 200
    4.2 0.45 ±0.15 ±0.02 200
    4.5 0.45 ±0.15 ±0.02 200
    5.0 0.5 ±0.2 ±0.02 200
    5.1 0.5 ±0.2 ±0.02 200
    5.5 0.5 ±0.2 ±0.02 200
    6.0 0.5 ±0.2 ±0.02 200
    6.2 0.5 ±0.2 ±0.02 200
    6.5 0.5 ±0.1 ±0.02 200
    7.0 0.5 ±0.2 ±0.02 200
    7.5 0.5 ±0.2 ±0.02 100
    8.0 0.5 ±0.2 ±0.02 100
    9.0 0.5 ±0.1 ±0.02 100
    9.5 0.5 ±0.2 ±0.02 100
    10.0 0.5 ±0.2 ±0.02 100
    11.0 0.5 ±0.2 ±0.02 100
    12.0 0.5 ±0.2 ±0.1 100
    13.0 0.5 ±0.2 ±0.1 100
    14.0 0.55 ±0.2 ±0.1 100
    15.0 0.55 ±0.2 ±0.1 100
    16.0 0.6 ±0.2 ±0.1 100
    18.0 0.6 ±0.2 ±0.1 50
    20.0 0.75 ±0.2 ±0.1 50
    25.0 0.8 ±0.5 ±0.1 50
    30.0 0.8 ±1.0 ±0.1 50
    35.0 1.0 ±1.0 ±0.1 50
    40.0 1.0 ±1.0 ±0.1 50
    50.0 1.0 ±1.0 ±0.1 50

    Unit: mm / Folded diameter × 2 ÷ 3.14 = Diameter (approximate)

    5

    Price List

    ※ All prices are per meter (excluding tax). Sizes not listed are made to order.⇒How to read the price list
    ※ Price revision: September 2, 2024
    Model Number Inner Diameter (φ) 1 Roll (m) List Price 100m 1000m (1 roll)
    TB-0.8 0.8 200 9 — 8
    TB-1.0 1.0 100 10 — 9
    Model Number Inner Diameter (φ) 1 Roll (m) List Price 100m 1 Roll (200m)
    TB-1.5 1.5 200 12 — 10
    TB-2.0 2.0 200 13 — 10
    TB-2.5 2.5 200 15 — 11
    TB-2.8 2.8 200 16 — 12
    TB-3.0 3.0 200 16 — 12
    TB-3.2 3.2 200 17 — 12
    TB-3.4 3.4 200 18 — 15
    TB-3.5 3.5 200 19 — 15
    TB-3.6 3.6 200 19 — 15
    TB-3.8 3.8 200 21 — 16
    TB-4.0 4.0 200 22 — 16
    TB-4.2 4.2 200 23 — 17
    TB-4.5 4.5 200 25 — 18
    TB-5.0 5.0 200 28 — 21
    TB-5.1 5.1 200 28 — 22
    TB-5.5 5.5 200 31 — 23
    TB-6.0 6.0 200 34 — 26
    TB-7.0 7.0 200 36 — 35
    Model Number Inner Diameter (φ) 1 Roll (m) List Price1 roll 100m 1000m (10 rolls)
    TB-8 8.0 100 44 42 —
    TB-9 9.0 100 46 47 —
    TB-10 10.0 100 55 53 —
    TB-12 12.0 100 66 63 —
    TB-15 15.0 100 89 86 —
    Model No. Inner Diameter (φ) 1 roll (m) List Price 1 roll 50m 500m (10 rolls)
    TB-20 20.0 50 165 154 —

    Inquiries/Sample Requests for this Product

    Our expert staff will carefully support you with inquiries such as size selection, custom colors, and custom production.

    📩 Inquiry Form Request Sample/Quotation
