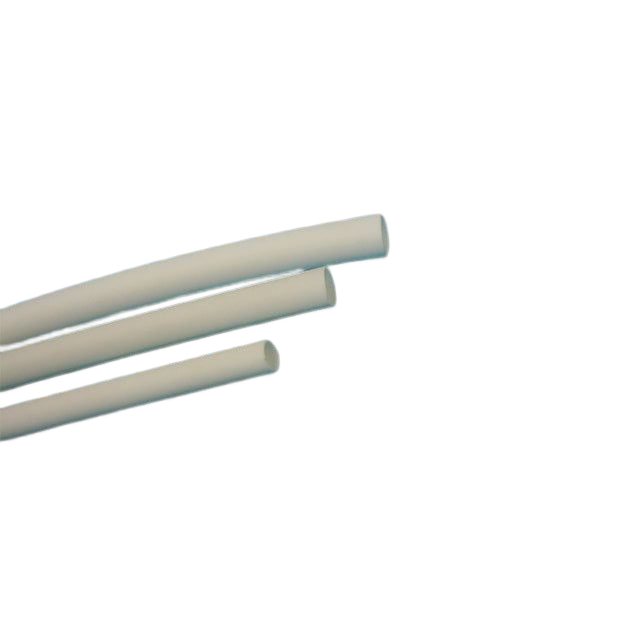

Non-halogen tube [ETC]

$4.00

Tax included. Shipping calculated at checkout.

在庫: あり

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

1. Features 2. Download Materials 3. Specifications & Data Characteristics 4. Sizes 5. Price List

Features

Completely Non-Halogen	Marking and wire protection tube that does not contain any harmful substances such as bromine or nitrogen.
Non-Shrink & Easy Positioning	Slightly oval shape prevents slipping off during installation, making positioning easy. Engraved characters are not easily erased.
Heat Resistant & Insulating Protection	Due to being polyolefin, it has high heat resistance and can also be used as a protective tube. Its non-shrink type makes it suitable for insulating wire protection.
Industries Adopted	Railway vehicle equipment

■ Sales

Available for purchase starting from 10m
Sizes larger than ETC-10 are made to order

■ Standard Colors

White (standard)
Black is made to order

📩 Inquire about this product Request Samples/Quote

Download Materials

📄Catalog (PDF) 📊Product Selection Chart (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-Inclusion Certificates (PDF) 📦Packaging Specifications (PDF)

Specifications & Data Characteristics

Material	Non-halogen polyolefin
Operating Temperature Range	-55℃ to 105℃
Standard	Passed Railway Vehicle Material Flame Resistance Test
Standard Color	White (Black is made to order)

Property	Test Method	Characteristic Value
Tensile Strength	ASTM D2671	10.4 MPa
Elongation	ASTM D2671	200%
Dielectric Strength	ASTM D2671 / AC2500V 60 sec	No breakdown
Flammability	UL224	VW-1
Volume Resistivity	ASTM D876	10¹⁴ Ω・cm (min)
Copper Corrosion	UL224 / 158℃ 168 hours	No corrosion
Water Absorption	ASTM D570	0.5%

*The data above are representative values and not guaranteed values.

Size List

*Sizes larger than ETC-10 are made to order.

Part Number	Inner Diameter D(mm)	Wall Thickness T(mm)	Packaging Unit (m/reel)
ETC-2.0	2.0±0.2	0.35±0.05	200
ETC-2.5	2.5±0.2
ETC-3.0	3.0±0.2
ETC-3.2	3.2±0.2
ETC-3.5	3.5±0.2
ETC-4.0	4.0±0.3
ETC-4.2	4.2±0.3
ETC-4.5	4.5±0.3
ETC-5.0	5.0±0.3		100
ETC-5.5	5.5±0.3
ETC-6.0	6.0±0.5
ETC-6.5	6.5±0.5
ETC-7.0	7.0±0.5	0.40±0.05
ETC-8.0	8.0±0.5
ETC-8.5	8.5±0.5
ETC-9.0	9.0±0.5
ETC-10.0	10.0±0.5
ETC-11.0	11.0±0.5		50
ETC-12.0	12.0±0.5
ETC-13.0	13.0±0.5
ETC-16.0	16.0±0.5	0.50±0.05
ETC-18.0	18.0±0.5
ETC-20.0	20.0±0.5
ETC-22.0	22.0±0.5
ETC-23.0	23.0±0.5
ETC-24.0	24.0±0.5		30 (ETC-25.0 is 50m/reel)
ETC-25.0	25.0±0.5
ETC-26.0	26.0±0.5
ETC-28.0	28.0±0.5
ETC-30.0	30.0±0.5

Unit: mm / *Sizes larger than ETC-10 are made to order.

Price List

* All prices are per meter (excluding tax). Available for purchase from 10m.

Part Number	1 reel (m)	List Price	10m	50m	100m	200m (1 reel)
ETC-2.0	200	51	47	42	39	31
ETC-2.5	200	59	54	50	44	36
ETC-3.0	200	68	62	57	51	41
ETC-3.2	200	70	64	59	53	42
ETC-3.5	200	71	65	60	54	43
ETC-4.0	200	75	70	63	58	46
ETC-4.2	200	79	72	65	60	48
ETC-4.5	200	84	77	71	64	51

Part Number	1 reel (m)	List Price	10m	50m	100m (1 reel)	500m (5 reels)
ETC-5.0	100	92	85	77	66	52
ETC-5.5	100	95	—	—	—	—
ETC-6.0	100	95	88	81	69	54
ETC-7.0	100	96	88	81	70	54
ETC-8.0	100	128	—	—	—	—
ETC-8.5	100	131	121	110	95	74
ETC-9.0	100	137	127	116	99	77

* Please inquire for prices of ETC-10 and larger sizes (made to order).

Inquire about this product / Request samples

Our expert staff will carefully support you with size selection, custom orders, special color consultations, and more.
