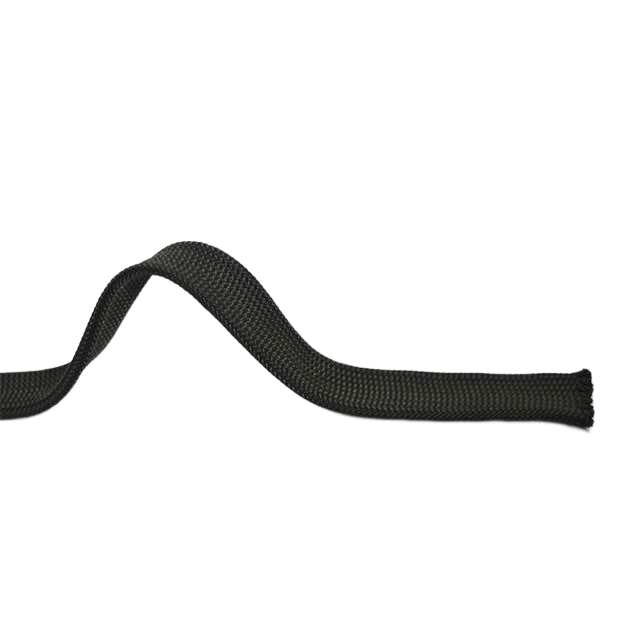

Abrasion-resistant nylon braided tube [FLN]
$129.00
$205.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
Abrasion Resistant Nylon Mesh Sleeve MIL Spec / Abrasion Resistant Nylon Braided Sleeve (MIL Spec Compliant)
Nylon monofilament, MIL-spec compliant. Braided sleeve resistant to fraying when cut, excellent abrasion and oil resistance. Available in black, from 1m. In stock (made-to-order when stock runs out).
1
Features
| Resistant to fraying when cut | Even when cut with scissors, it won't easily unravel, making it easy to cut on-site. Bobbin-wound to prevent tangling and allow full use. |
|---|---|
| Abrasion-resistant, oil-resistant, strong against continuous vibration | Made of thick nylon monofilament, it is highly resistant to continuous vibration, rubbing, and abrasion. Also oil-resistant, it can be used for protecting vehicle equipment. |
| MIL-spec compliant (Military Standard) | Compliant with U.S. Military Standard (MIL-SPEC). Proven track record in wiring protection for defense industry, aerospace equipment, and circuit pit equipment. |
| Custom manufacturing available | Custom manufacturing for desired sizes and flexibility is available. Connections may occur for lengths of 10m or more. |
📊 Case Studies
Manufacturer
Fiber Optic ManufacturerSituation Before Adoption
Since 2018. A defense-related company was considering solutions for cables being dragged and abraded on asphalt during equipment maintenance.Effect of Adoption
FLN was adopted because it is a US MIL-spec product. Due to its high abrasion resistance, cable breakages and other problems were eliminated.■ Sales Information
- Sold per roll
- Overseas made-to-order product (2-3 months delivery time)
■ Applications
- Cable/hose protection (circuit pit equipment, aerospace equipment, defense industry)
- Oil and abrasion protection for vehicle equipment
2
Document Download
3
Specifications
| Material | Nylon Monofilament |
|---|---|
| Operating Temperature Range | -55℃ to 105℃ |
| Melting Point | 220℃ |
| Standards | RoHS・MIL (U.S. Military Standard) |
| Standard Color | Black |
4
Size List
| Model Number | Natural Inner Diameter D approx. (mm) | Max Expanded Diameter D1 approx. (mm) | Folded Width E approx. (mm) |
|---|---|---|---|
| FLN-3 | 2.5 | 3.5 | 4 |
| FLN-6 | 5 | 7 | 9 |
| FLN-12 | 12 | 15 | 16 |
| FLN-19 | 16 | 23 | 22 |
| FLN-25 | 21 | 30 | 24 |
| FLN-30 | 23 | 35 | 30 |
※ Due to the nature of braided tubing, the folded width may vary slightly depending on the lot.
※ Once stock runs out, it will be manufactured to order.
Unit: mm
5
Price List
⚠️ Once current stock runs out, products will be made to order.
※ All prices are per meter (excluding tax).⇒How to Read the Price List
FLN-3・6 (1 roll of 300m)
| Model Number | Natural Diameter | 1 Roll (m) | List Price | 300m (1 roll) |
|---|---|---|---|---|
| FLN-3 | approx. 2.5mm | 300 | 97 | 61 |
| FLN-6 | approx. 5mm | 300 | 218 | 138 |
FLN-12 (1 roll of 150m)
| Model Number | Natural Diameter | 1 Roll (m) | List Price | 150m (1 roll) |
|---|---|---|---|---|
| FLN-12 | approx. 12mm | 150 | 502 | 368 |
FLN-19・25・30 (1 roll of 75m)
| Model Number | Natural Diameter | 1 Roll (m) | List Price | 75m (1 roll) |
|---|---|---|---|---|
| FLN-19 | approx. 16mm | 75 | 596 | 437 |
| FLN-25 | approx. 21mm | 75 | 1,134 | 832 |
| FLN-30 | approx. 23mm | 75 | 1,638 | 1,201 |
Inquire about this product / Request a quote
Our expert staff will carefully assist you with size selection, custom manufacturing, and application consultations.
