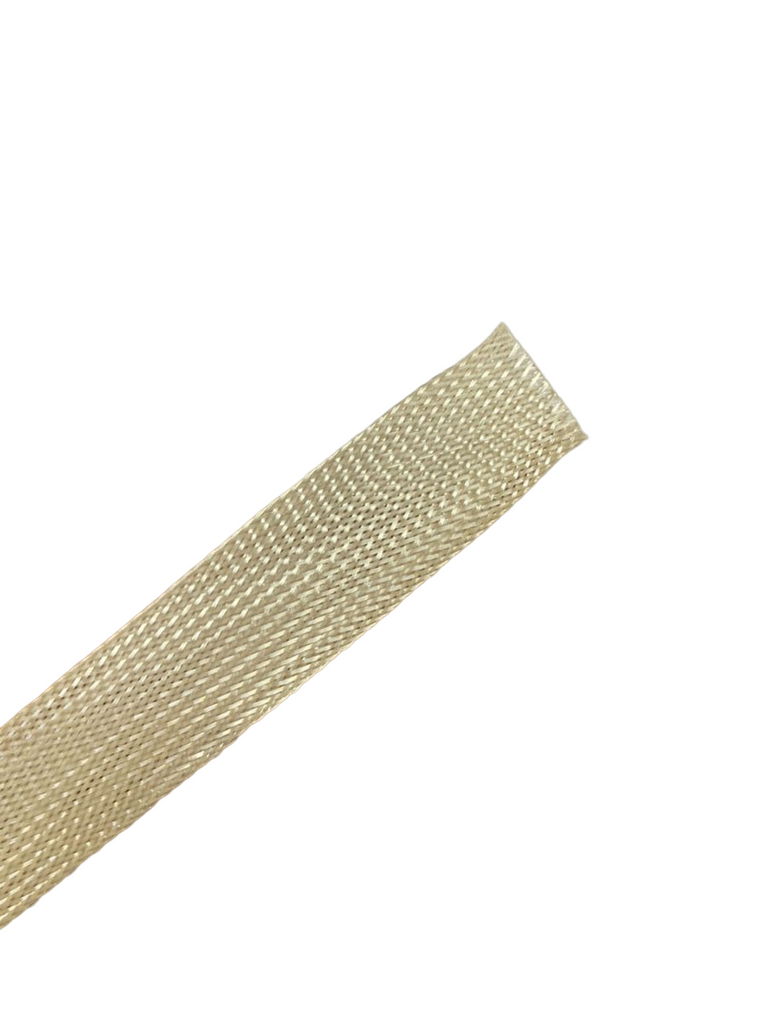

PEEK braided tube [FLPEEK]
$0.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: About a month
- Barcode:
PEEK Braided Sleeve / PEEK Braided Tube
PEEK (Polyetheretherketone) braided tubing. Excellent heat resistance up to 260°C and resistance to solvents and chemicals.
Order production available from 1 roll.
1
Features
| PEEK material, heat resistant to 260℃, chemical resistant | Braided tubing made of PEEK (Polyetheretherketone). Operates from -70℃ to 260℃ and offers excellent resistance to solvents and chemicals. |
|---|---|
| Track record in medical and food industries | Proven track record in medical and food equipment. RoHS2 compliant, beige color. |
■ Sales
- Order production available from 1 roll
- Please contact us for pricing
■ Applications
- Wiring and tube protection for medical devices
- Chemical and heat protection for food equipment
2
Download Materials
3
Specifications
| Material | PEEK (Polyetheretherketone) |
|---|---|
| Operating Temperature Range | -70℃ to 260℃ |
| Standard | RoHS2 |
| Standard Color | Beige |
4
Size List
| Model Number | Nominal Flat Diameter E (approx. mm) | Max Expanded Diameter D (approx. mm) | Standard Length (m) |
|---|---|---|---|
| FLPEEK-3 | 3 | 8 | 300 |
| FLPEEK-6 | 6 | 14 | 300 |
| FLPEEK-9 | 9 | 16 | 150 |
| FLPEEK-12 | 12 | 24 | 150 |
| FLPEEK-15 | 15 | 31 | 150 |
| FLPEEK-19 | 19 | 35 | 75 |
※ Due to the nature of braided tubing, the flat diameter may vary slightly by lot.
Unit: mm
Inquire about this product / Request a quote
Our expert staff will carefully support you with inquiries about pricing, delivery times, and size selection.
