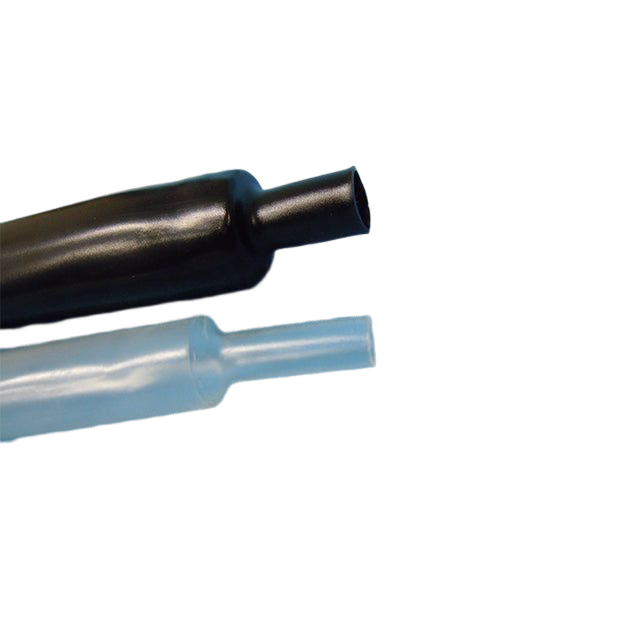

Small diameter heat shrink tubing, 1φ~10φ, black/transparent [THT]
$6.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
Glossy general-purpose heat shrink tubing, black and transparent.
Wide range of sizes from 1φ available in stock for immediate delivery.
1
Features and Track Record
| Low temperature shrinkage | Shrinks at relatively low temperatures, making the shrinking process easy. |
|---|---|
| Surface gloss | Glossy surface ideal for automotive parts, small appliances, and household items. |
| Color | Black (B) and Transparent (T). Transparent type allows protection of wire markings while remaining visible. |
| Track Record | Insulation protection for electronic parts such as wires and capacitors. |
📊 Track Record
Adopting Manufacturer
Panel manufacturerSituation Before Adoption
From 2022. Mitsubishi Chemical's Hishitube production ended, so an alternative was sought. We were looking for a stable supplier of flat tubes around 80mm wide for busbar insulation.Effect of Adoption
Standard stock for inner diameters from 1mm to 100mm. We started manufacturing and delivering desired sizes in 50m rolls. Customer approval was obtained for the alternative product, and stable production continues.■ Sales
- Sold in units of 20 pieces x 1m (in multiples of 10 pieces)
- Custom production of large diameter sizes available
- Surface gloss intensity may vary slightly due to manufacturing environment (no impact on quality)
■ Related products
- Please use a heat gun for shrinking
- Our heat guns are available here
2
Download Materials
Catalog (PDF) Product Selection Chart (PDF) RoHS2 Certificate (PDF) Other Non-Inclusion Certificates (PDF)
3
Specifications
| Material | Polyolefin |
|---|---|
| Shrinkage Start Temperature | 70℃ (Minimum full shrinkage: 105℃) |
| Operating Temperature Range | -55℃ to 105℃ |
| Shrink Ratio | 2:1 |
| Rated Voltage | 600V |
| Color | Black (B), Transparent (T) |
| Characteristic | Test Method | Characteristic Value |
|---|---|---|
| Tensile Strength | ASTM D 2671 | >12MPa |
| Elongation | ASTM D 2671 | >400% |
| Tensile Strength after Thermal Aging | 136℃・168 hours | >11MPa |
| Elongation after Thermal Aging | >200% | |
| Axial Shrinkage | UL224 | 0±5% |
| Eccentricity | ASTM D 2671 | >30% |
| Flammability | — | Flammable |
| Dielectric Strength | ASTM D 2671 (AC 2500V・1 min) | No Breakdown |
| Volume Resistivity | ASTM D 2671 | >10¹⁴ Ω・cm |
| Copper Corrosion | UL 224 | No Corrosion |
*The above values are test values and not guaranteed values.
4
Size List
※ Please check the price list for in-stock sizes.
※ Please note that D refers to the inner diameter of the tube, not the flattened width.
※ Please note that D refers to the inner diameter of the tube, not the flattened width.
| Part No. | Before Shrinkage D Inner Diameter (mm) |
After Shrinkage | Packing Unit (m) | |
|---|---|---|---|---|
| （Blank） | D1 Inner Diameter (mm) | T Wall Thickness (mm) | ||
| THT-1.0 | 1.0 | 0.5 | 0.33 | 200 |
| THT-1.5 | 1.5 | 0.8 | ||
| THT-2.0 | 2.0 | 1.0 | 0.42 | |
| THT-3.0 | 3.0 | 1.5 | 0.42 | |
| THT-4.0 | 4.0 | 2.0 | 0.52 | |
| THT-5.0 | 5.0 | 2.5 | 0.52 | 100 |
| THT-6.0 | 6.0 | 3.0 | 0.54 | |
| THT-8.0 | 8.0 | 4.0 | ||
| THT-10.0 | 10.0 | 5.0 | ||
| THT-12.0 | 12.0 | 6.0 | 0.62 | 50 |
| THT-14.0 | 14.0 | 7.0 | 0.67 | |
| THT-16.0 | 16.0 | 8.0 | ||
| THT-20.0 | 20.0 | 10.0 | 0.75 | |
| THT-25.0 | 25.0 | 12.5 | 0.85 | |
| THT-30.0 | 30.0 | 15.0 | ||
| THT-40.0 | 40.0 | 20.0 | 0.96 | |
| THT-50.0 | 50.0 | 25.0 | ||
| THT-60.0 | 60.0 | 30.0 | 0.97 | 30 |
| THT-100.0 | 100.0 | 50.8 | 1.3 | 30 |
Unit: mm
5
Price List
※ All prices are per 1m (excluding tax). Black (B) and Transparent (T). ⇒ How to read the price list
※ For made-to-order products and sizes not listed in the price list, please contact us.
※ For made-to-order products and sizes not listed in the price list, please contact us.
| Part No. | List Price | 20 pieces | 50 pieces | 100 pieces | 200 pieces | 1,000 pieces |
|---|---|---|---|---|---|---|
| THT-1 (1m length) | 42 | 40 | 39 | 36 | 29 | Please inquire |
| THT-1.5 (1m length) | 42 | 40 | 39 | 36 | 29 | |
| THT-2 (1m length) | 42 | 40 | 39 | 36 | 29 | |
| THT-3 (1m length) | 48 | 44 | 43 | 40 | 32 | |
| THT-4 (1m length) | 59 | 55 | 54 | 49 | 40 |
| Part No. | List Price | 20 pieces | 50 pieces | 100 pieces | 500 pieces | 1,000 pieces |
|---|---|---|---|---|---|---|
| THT-5 (1m length) | 65 | 62 | 60 | 54 | 44 | Please inquire |
| THT-6 (1m length) | 72 | 69 | 66 | 60 | 49 | |
| THT-8 (1m length) | 82 | 77 | 75 | 69 | 55 | |
| THT-10 (1m length) | 88 | 84 | 81 | 74 | 60 |
Inquire about this product / Request samples
Our expert staff will carefully support you from size selection consultations to custom manufacturing.
