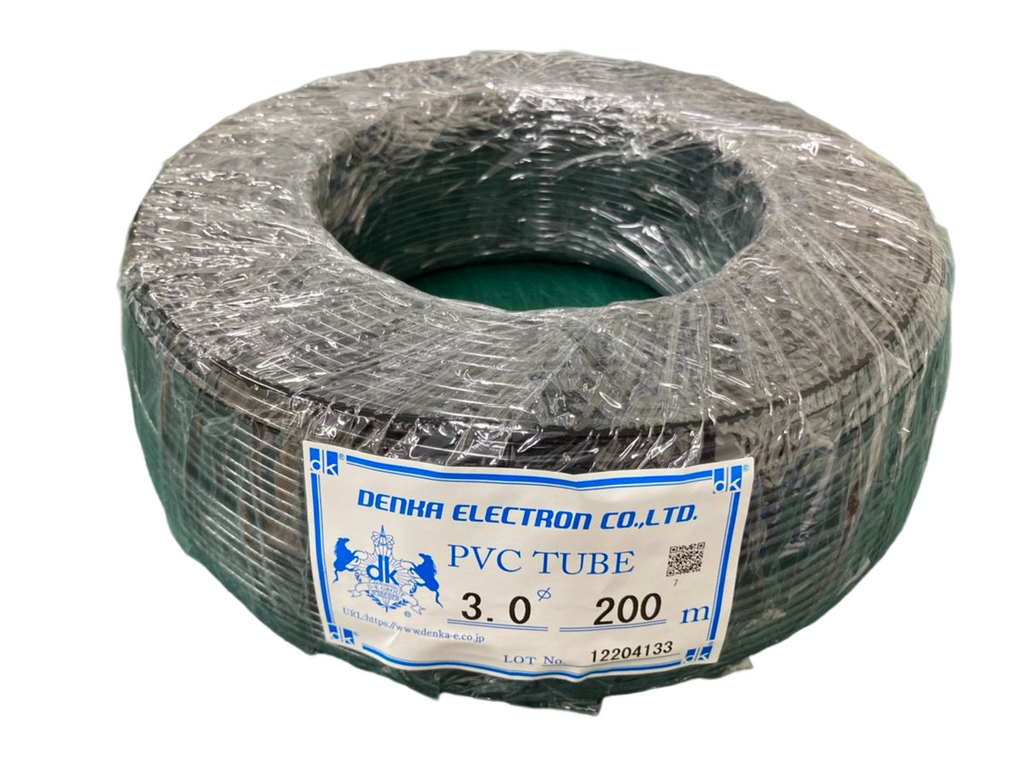

Black vinyl tube [TB-B]
Black vinyl tube [TB-B]

    Black vinyl tube [TB-B]

    $71.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    As of April 21st, TB-3.0B-200, TB-4.0B-200, TB-5.0B-200, TB-8.0B-100, and TB-9.0B-100 are out of stock, with a lead time of 2-3 weeks.
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:
    1. Features and Track Record 2. Download Materials 3. Specifications and Data Characteristics 4. Sizes 5. Price List
    Vinyl Tube Black / ビニールチューブ 黒

    Black PVC vinyl tubes with a wide range of sizes. JIS C2410 compliant, 300V rated. 1φ to 20φ in stock.

    1

    Features and Track Record

    Wide Range of Sizes Available in a wide range of sizes from 0.8φ to 50φ. Also available in white, clear, and colors (grey, red, blue, yellow, green, brown, etc.)
    JIS C2410 compliant, 300V rated JIS C2410 compliant, rated voltage 300V, equivalent to UL94HB. Dielectric breakdown voltage of 2500V or more.
    📊 Track Record
    Manufacturer Adopted By
    Construction equipment manufacturer
    Situation Before Adoption
    Since 2024. PVC tubes were used as protective material for hoses, but parts costs increased annually due to rising naphtha prices.
    Effect of Adoption
    Switched to our product. Detailed discussions on flexibility, gloss, thickness, and packaging resulted in a switch that met the customer's desired specifications and achieved cost reduction.
    ＊For more detailed case studies and effects, please inquire →
    ■ Sales
    • In stock: 1φ to 20φ (black, white, clear)
    • Sizes not listed are made-to-order
    • Special colors (grey, red, blue, yellow, green, brown, etc.) also available
    ■ Related Products
    📩 Inquire about this product Request Sample/Quote
    2

    Download Materials

    📄Catalog (PDF) 📊Product Selection Chart (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-Inclusion Certificates (PDF)
    3

    Specifications and Data Characteristics

    Material PVC
    Standard JIS C2410 compliant
    Operating Temperature Range -20℃ to 60℃
    Rated Voltage 300V
    Flame Retardancy UL94HB equivalent
    Item Test Method Characteristics
    Low-temperature bending JIS C-2133 12 No cracks on surface
    Tensile Strength JIS C-2133 13 >10.4 MPa
    Elongation JIS C-2133 13 >100%
    Dielectric Breakdown Voltage JIS C-2133 15.1 2500V or more
    Dielectric Strength JIS C-2133 15.2 Withstands 2500V for 1 minute
    Oil Resistance JIS K6723 70℃×4 hours, 85% or more
    Volume Resistivity JIS C-2133 17 >10¹⁴ Ω・m
    4

    Size List

    ビニールチューブ サイズ図
    Inner Diameter D(mm) Wall Thickness T(mm) Tolerance Packaging Unit (m/roll)
    Inner Diameter Wall Thickness
    0.8 0.4 ±0.1 ±0.08 1000
    1.0 0.4 ±0.1 ±0.08 1000
    1.5 0.4 ±0.1 ±0.08 200
    2.0 0.4 ±0.15 ±0.08 200
    2.5 0.4 ±0.15 ±0.08 200
    2.8 0.45 ±0.15 ±0.08 200
    3.0 0.45 ±0.15 ±0.02 200
    3.2 0.45 ±0.15 ±0.02 200
    3.4 0.45 ±0.15 ±0.02 200
    3.5 0.45 ±0.15 ±0.02 200
    3.6 0.45 ±0.15 ±0.02 200
    3.8 0.45 ±0.15 ±0.02 200
    4.0 0.45 ±0.15 ±0.02 200
    4.2 0.45 ±0.15 ±0.02 200
    4.5 0.45 ±0.15 ±0.02 200
    5.0 0.5 ±0.2 ±0.02 200
    5.1 0.5 ±0.2 ±0.02 200
    5.5 0.5 ±0.2 ±0.02 200
    6.0 0.5 ±0.2 ±0.02 200
    6.2 0.5 ±0.2 ±0.02 200
    6.5 0.5 ±0.1 ±0.02 200
    7.0 0.5 ±0.2 ±0.02 200
    7.5 0.5 ±0.2 ±0.02 100
    8.0 0.5 ±0.2 ±0.02 100
    9.0 0.5 ±0.1 ±0.02 100
    9.5 0.5 ±0.2 ±0.02 100
    10.0 0.5 ±0.2 ±0.02 100
    11.0 0.5 ±0.2 ±0.02 100
    12.0 0.5 ±0.2 ±0.1 100
    13.0 0.5 ±0.2 ±0.1 100
    14.0 0.55 ±0.2 ±0.1 100
    15.0 0.55 ±0.2 ±0.1 100
    16.0 0.6 ±0.2 ±0.1 100
    18.0 0.6 ±0.2 ±0.1 50
    20.0 0.75 ±0.2 ±0.1 50
    25.0 0.8 ±0.5 ±0.1 50
    30.0 0.8 ±1.0 ±0.1 50
    35.0 1.0 ±1.0 ±0.1 50
    40.0 1.0 ±1.0 ±0.1 50
    50.0 1.0 ±1.0 ±0.1 50

    Unit: mm / Folded diameter × 2 ÷ 3.14 = Diameter (approx.)

    5

    Price List

    ※ All prices are per meter (excluding tax). Sizes not listed are made-to-order. ⇒How to read the price list
    ※ Price revision: September 2, 2024
    Model Number Inner Diameter (φ) 1 Roll (m) List Price 100m 1000m (1 roll)
    TB-0.8 0.8 200 9 — 8
    TB-1.0 1.0 100 10 — 9
    Model Number Inner Diameter (φ) 1 Roll (m) List Price 100m 1 Roll (200m)
    TB-1.5 1.5 200 12 — 10
    TB-2.0 2.0 200 13 — 10
    TB-2.5 2.5 200 15 — 11
    TB-2.8 2.8 200 16 — 12
    TB-3.0 3.0 200 16 — 12
    TB-3.2 3.2 200 17 — 12
    TB-3.4 3.4 200 18 — 15
    TB-3.5 3.5 200 19 — 15
    TB-3.6 3.6 200 19 — 15
    TB-3.8 3.8 200 21 — 16
    TB-4.0 4.0 200 22 — 16
    TB-4.2 4.2 200 23 — 17
    TB-4.5 4.5 200 25 — 18
    TB-5.0 5.0 200 28 — 21
    TB-5.1 5.1 200 28 — 22
    TB-5.5 5.5 200 31 — 23
    TB-6.0 6.0 200 34 — 26
    TB-7.0 7.0 200 36 — 35
    Model Number Inner Diameter (φ) 1 Roll (m) List Price 1 Roll (100m) 1000m (10 Rolls)
    TB-8 8.0 100 44 42 —
    TB-9 9.0 100 46 47 —
    TB-10 10.0 100 55 53 —
    TB-12 12.0 100 66 63 —
    TB-15 15.0 100 89 86 —
    Model Number Inner Diameter (φ) 1 roll (m) List Price 1 roll (50m) 500m (10 rolls)
    TB-20 20.0 50 165 154 —

    Inquiries and Sample Requests for This Product

    Our expert staff will provide careful support for size selection, custom colors, and custom production requests.

    📩 Inquiry Form Sample/Quote Request
