Grounding Code [GWS]
$0.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: About a week
- Barcode:

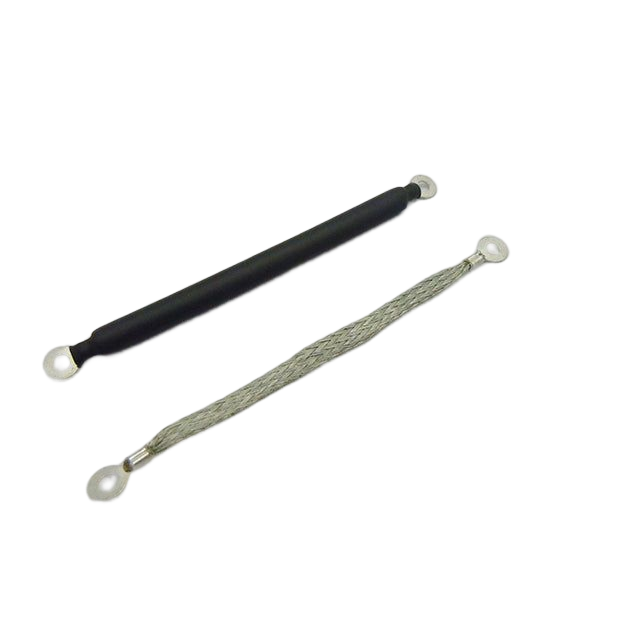

Grounding cord with crimp terminals made with a "no-whisker" manufacturing method.
Supports high voltage and high frequency. Custom lengths and sheath markings also available.
1
Features
| "No-whisker" manufacturing method | Absolutely no core wire protrusion (whiskers). Effective in areas with high voltage and high frequency. |
|---|---|
| Flexibility/Tight Space Compatibility | Flexible, allowing use in confined spaces. |
| Sheathed/Unsheathed Selection | Available with or without tube sheathing. Engraving on the sheath tube is also possible. |
| Industries Employing | Widely used as grounding cords in various industries. |
■ Sales
- Manufactured to desired length
- Sheath tube engraving available
- Please inquire for pricing
■ Related Products
- For EMC cable glands, click here
- For shielding tubes, see ATSX tubes
2
Download Materials
3
Specifications
| Material (Conductor) | Soft copper wire + tin plating |
|---|---|
| Terminals | Crimp terminals |
| Sheathing | Polyolefin UL heat shrinkable tube (unsheathed option also available) |
| Applicable Screws | M3, M4 |
4
Size List
■ GW Type (Open on one end)
| Model Number | Length (mm) | Nominal Cross-sectional Area (sq) | Strand Configuration (mm x number of strands) | Finished Dimensions | Allowable Current (A) |
|---|---|---|---|---|---|
| GW-50-100 | 100 | 0.5 | 0.12×48 | 0.5×3 | 10 |
| GW-75-100 | 100 | 0.75 | 0.12×64 | 0.7×3 | 13 |
| GW-125-100 | 100 | 1.25 | 0.12×112 | 1.0×4 | 20 |
| GW-200-100 | 100 | 2.0 | 0.12×176 | 1.0×6 | 29 |
| GW-350-100 | 100 | 3.5 | 0.12×312 | 1.0×10 | 48 |
| GW-550-100 | 100 | 5.5 | 0.12×490 | 1.5×12 | 65 |
■ GWS Type (Terminals on both ends)
| Model Number | L Length (mm) | Screw Size (both ends) | Cross-sectional Area (sq) | Strand Configuration (mm x number of strands) | Allowable Current (A) |
|---|---|---|---|---|---|
| GWS-50-50 | 50 | M3 | 0.5 | 0.12×48 | 10 |
| GWS-50-100 | 100 | 0.5 | 0.12×48 | 10 | |
| GWS-75-50 | 50 | 0.75 | 0.12×64 | 13 | |
| GWS-75-100 | 100 | 0.75 | 0.12×64 | 13 | |
| GWS-125-100 | 100 | M4 | 1.25 | 0.12×112 | 20 |
| GWS-200-100 | 100 | 2.0 | 0.12×176 | 29 |
※ Lengths can be manufactured to your specifications. The above are examples of standard sizes.
5
Price List
※ Please inquire for price and lot size. We will provide a quote based on your desired length and specifications.
Inquire about this product / Request a sample
Our expert staff will provide dedicated support for custom lengths, markings, special specifications, and more.
