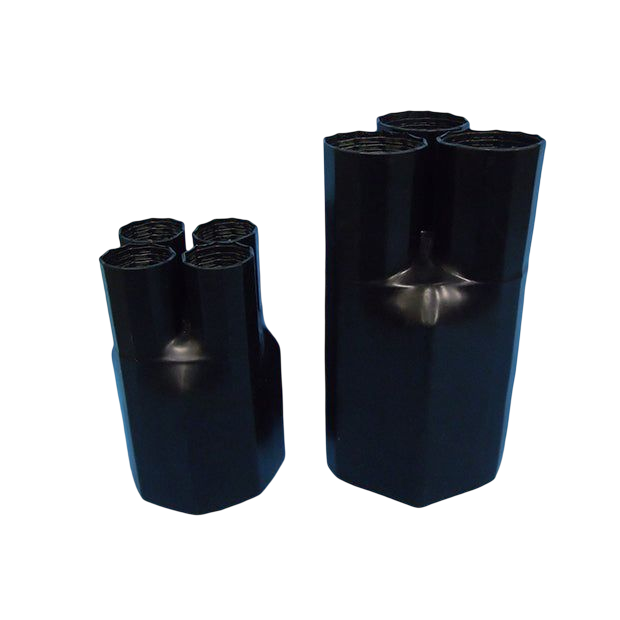

Low voltage multi-hole heat shrink cap [TSCL]
$0.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: About a month
- Barcode:
Supports 2/3/4 poles.
For insulating and protecting branching points of low-voltage cables. UV and weather resistant. Made to order.
1
Features
| Multi-hole | Available in 2-pole, 3-pole, and 4-pole types. Insulates and protects branching points of low-voltage cables. |
|---|---|
| 1KV Withstand Voltage | Dielectric strength of 15kV/mm or more. Supports 1KV withstand voltage. |
| UV & Weather Resistant | Excellent insulation, UV resistance, and weather resistance, suitable for outdoor use. |
■ Sales Information
- This product is made to order. Please contact us for pricing and delivery times.
■ Related Products
- For high-voltage 3-pole types, see TSCM caps
- Please use a heat gun for shrinking.
2
Download Materials
3
Specifications
| Material | Crosslinked Polyolefin |
|---|---|
| Shrinkage Ratio | 2:1 to 3:1 |
| Shrinkage Start Temperature | 110℃ |
| Minimum Full Shrinkage Temperature | 130℃ |
| Operating Temperature Range | -55℃ to 110℃ |
| Standard Color | Black |
| Property | Test Method | Property Value |
|---|---|---|
| Tensile Strength | ASTM D2671 | 8MPa min. |
| Elongation | ASTM D2671 | 300% |
| Tensile Strength after Thermal Aging | ASTM D2671 (120℃・168 hours) | 7MPa min. |
| Elongation after Thermal Aging | ASTM D2671 (120℃・168 hours) | 200% min. |
| Dielectric Strength | IEC 243 | 15kV/mm min. |
| Volume Resistivity | IEC 93 | 10¹³ Ω・cm min. |
| Water Absorption | ISO 62 | <1% |
※The above data are typical values and not guaranteed values.
4
Size List
| Part No. | Number of Branches (Number of Holes) |
D Inner Diameter・Overall (mm) | D1 Inner Diameter・Multi-hole Part (mm) | L Overall Length (mm) |
L1 Multi-hole Part Length (mm) |
||
|---|---|---|---|---|---|---|---|
| Before Shrinkage | After Shrinkage | Before Shrinkage | After Shrinkage | ||||
| TSCL-2-3314 | 2 | 33 | 10 | 14 | 3 | 90 | 20 |
| TSCL-2-6024 | 2 | 60 | 22 | 24 | 7 | 120 | 34 |
| TSCL-3-3811 | 3 | 38 | 14 | 11 | 4 | 110 | 25 |
| TSCL-3-6020 | 3 | 60 | 24 | 20 | 8 | 175 | 50 |
| TSCL-3-8036 | 3 | 80 | 36 | 36 | 16 | 190 | 55 |
| TSCL-3-11048 | 3 | 110 | 46 | 48 | 20 | 200 | 60 |
| TSCL-3-12555 | 3 | 125 | 46 | 55 | 20 | 200 | 60 |
| TSCL-3-14070 | 3 | 140 | 68 | 70 | 25 | 220 | 80 |
| TSCL-4-4012 | 4 | 40 | 15 | 12 | 4 | 105 | 20 |
| TSCL-4-5520 | 4 | 55 | 26 | 20 | 8 | 180 | 50 |
| TSCL-4-7525 | 4 | 75 | 26 | 25 | 8 | 180 | 50 |
| TSCL-4-8230 | 4 | 82 | 35 | 30 | 10 | 190 | 60 |
| TSCL-4-10035 | 4 | 100 | 45 | 35 | 12 | 200 | 80 |
| TSCL-4-12555 | 4 | 125 | 50 | 55 | 15 | 200 | 70 |
Unit: mm
5
Price List
※ This product is made to order. Please contact us for pricing, delivery times, and minimum lot sizes.
Inquire about this product / Request a sample
Our expert staff will provide thorough support for size selection, number of branches, and insulation protection for low-voltage cables.
