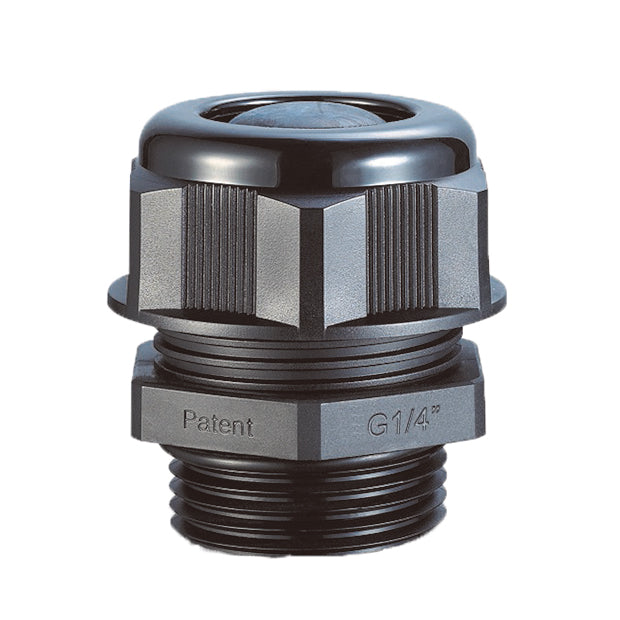

Nylon cable gland G(PF) screw [G-]
$9.00
Tax included.
Shipping calculated at checkout.
在庫: あり
As of April 8th, G10025B/G1407 is out of stock, and the lead time is approximately one month.
納期: 1～3日以内に出荷
- Barcode:
Nylon Cable Gland G(PF) / Nylon Cable Gland G Series
High-performance cable glands with IP68/69K waterproof rating. Quick and secure hand-tightening without tools.
Compatible with a wide range of G/PG/M/NPT threads. Proven track record in control panels, solar power generation, railways, and ships.
1
Features
| IP68/69K Waterproof Rating | Achieves high waterproof standards of IP68 and IP69K. Reliably prevents water and dust from entering internal equipment. |
|---|---|
| Tool-free Hand-tightening | Allows quick and secure cable tightening by hand without tools. Excellent workability on site. |
| Wide Range of Sizes and Thread Types | Offers a wide range of sizes and various thread types (M, MG, PG, G, NPT). Custom sizes, colors, and UL94 V-0 compliant products can also be manufactured to order. |
※ For purchases of 1,000 units or more, custom sizes/colors, or UL94 V-0 compliant products, please contact us.
※ Please contact us for pricing and lot sizes.
※ Please contact us for pricing and lot sizes.
■ Build-to-order
- Custom sizes and custom colors available
- UL94 V-0 compliant products
■ Proven Track Record
- Control panels, outdoor communication devices, solar power generation
- Machinery requiring waterproofing and dustproofing, such as railways, ships, and machine tools
2
Download Materials
3
Specifications
| Material (Body) | Nylon 6 |
|---|---|
| Material (Seal/Washer) | NBR |
| Operating Temperature Range | -40℃ to 100℃ |
| Standards | UL94 V-2 / CE / IP68・IP69K / RoHS / REACH |
| Standard Colors | Black・Grey |
4
Size List (G/PF Threads)
| Model | Thread Type D1 | Applicable Cable (mm) | H(mm) | GL(mm) | Spanner Size (mm) | |
|---|---|---|---|---|---|---|
| Grey | Black | |||||
| G1407 | G1407B | G/(PF) 1/4" | 3〜6.5 | 21 | 9 | 15 |
| G1405 | G1405B | G/(PF) 1/4" | 2〜5 | 21 | 9 | 15 |
| G3808 | G3808B | G/(PF) 3/8" | 4〜8 | 22 | 10 | 19/22 |
| G3806 | G3806B | G/(PF) 3/8" | 2〜6 | 22 | 10 | 19/22 |
| G1212 | G1212B | G/(PF) 1/2" | 6〜12 | 26 | 10 | 24 |
| G1209 | G1209B | G/(PF) 1/2" | 5〜9 | 26 | 10 | 24 |
| G1214 | G1214B | G/(PF) 1/2" | 10〜14 | 28 | 10 | 27 |
| G3418 | G3418B | G/(PF) 3/4" | 13〜18 | 31 | 15 | 33 |
| G3416 | G3416B | G/(PF) 3/4" | 9〜16 | 31 | 15 | 33 |
| G10025 | G10025B | G/(PF) 1" | 18〜25 | 39 | 15 | 42 |
| G10020 | G10020B | G/(PF) 1" | 13〜20 | 39 | 15 | 42 |
| G11432 | G11432B | G/(PF) 1 1/4" | 22〜32 | 48 | 15 | 53 |
| G11426 | G11426B | G/(PF) 1 1/4" | 20〜26 | 48 | 15 | 53 |
| G11238 | G11238B | G/(PF) 1 1/2" | 32〜38 | 49 | 20 | 60 |
| G11231 | G11231B | G/(PF) 1 1/2" | 25〜31 | 49 | 20 | 60 |
| G20044 | G20044B | G/(PF) 2" | 37〜44 | 50 | 20 | 65 |
| G20035 | G20035B | G/(PF) 2" | 29〜35 | 50 | 20 | 65 |
Unit: mm
