Post-insertion shield sleeve [FLSM]
$10.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:

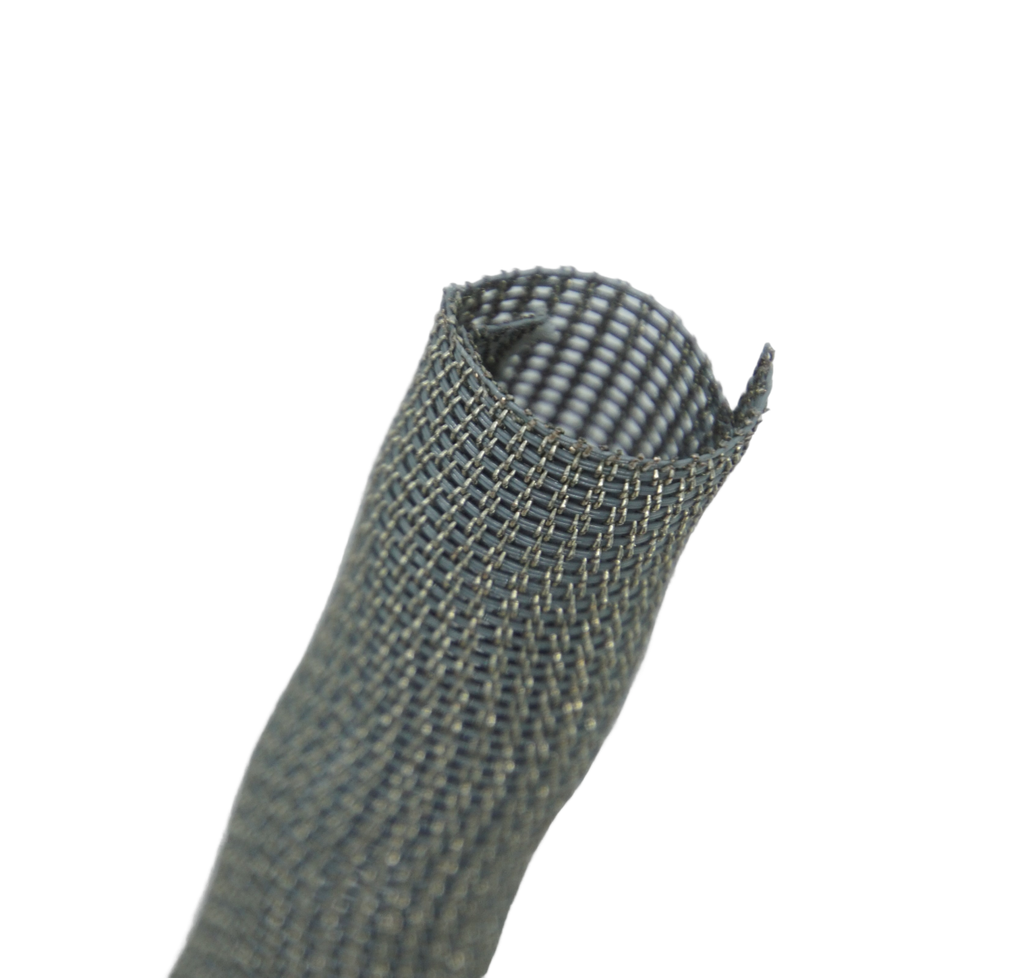

Post-installable conductive braided tube.
Uses tin-plated copper foil. For noise countermeasures in machine tools and existing wiring.
1
Features and Track Record
| Conductive and Post-Installable | Conductive with tin-plated copper foil. Can be installed over existing wiring. |
|---|---|
| Heat and Abrasion Resistant | Uses heat-resistant polyester yarn (up to 150°C). Can be used in high-temperature environments. Maintains high abrasion resistance and flexibility. |
| Industries Adopted | Machine tool manufacturers, etc. |
■ Sales
- Sold cut from 1m
- Custom production of large diameter sizes also available
2
Download Materials
Catalog (PDF) Product Selection Chart (PDF) RoHS2 Certificate (PDF) Other Non-Containment Certificates (PDF)
3
Specifications
| Material | Heat-resistant polyester yarn + tin-plated copper foil |
|---|---|
| Standard | RoHS |
| Flame Retardancy | Equivalent to UL224 VW-1 |
| Operating Temperature Range | -40℃ to 150℃ |
| Standard Color | Gray |
■ Shielding Effect (Attenuation Rate)
Compliant with ASTM D4935-10
4
Size List
※ Due to the nature of braided tubing, the diameter may vary slightly depending on the lot.
| Part No. | Natural Diameter D(mm) | Applicable Range (mm) | Wire Diameter (mm) | Packing Unit (m) |
|---|---|---|---|---|
| FLSM-3 | 3 | 3〜3.5 | 0.24 | 100 |
| FLSM-6 | 6 | 6〜7 | 100 | |
| FLSM-12 | 12 | 12〜15 | 100 | |
| FLSM-19 | 19 | 19〜23 | 50 | |
| FLSM-25 | 25 | 25〜29 | 25 |
5
Price List
※ All prices are per meter (excluding tax). "—" indicates please inquire.
| Part No. | 1 Roll (m) | List Price | 1m | 10m | 25m | 50m | 100m |
|---|---|---|---|---|---|---|---|
| FLSM-3 | 100m | 1,633 | 1,415 | 1,198 | 871 | 827 | 784 |
| FLSM-6 | 100m | 2,853 | 2,473 | 2,092 | 1,522 | 1,446 | 1,370 |
| FLSM-12 | 100m | 5,707 | 4,946 | 4,185 | 3,044 | 2,891 | 2,739 |
| FLSM-19 | 50m | 6,315 | 5,473 | 4,631 | 3,368 | 3,200 | — |
| FLSM-25 | 25m | 9,154 | 7,934 | 6,713 | 4,882 | — | — |
Inquire about this product / Request samples
Our expert staff will provide thorough support for size selection, custom large-diameter production, noise countermeasure consultations, and more.
