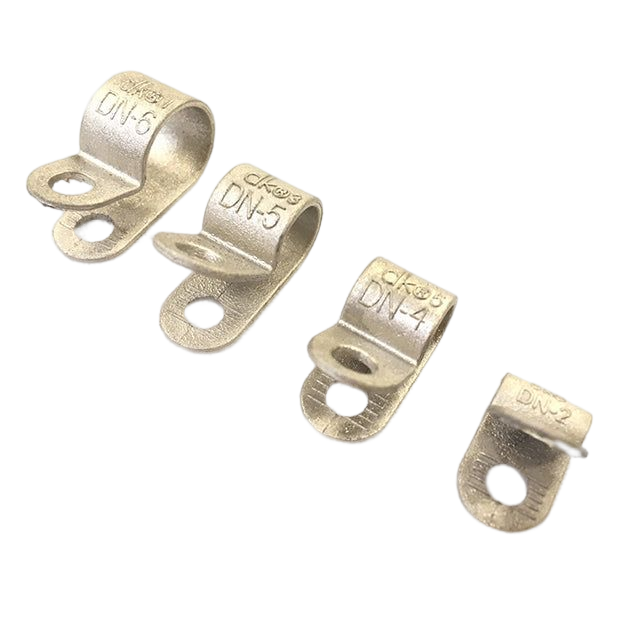

Noise Clip [DN-S]
$10.00
Tax included.
Shipping calculated at checkout.
在庫: あり
As of March 19th, the DN-4S is out of stock and will take approximately one month for delivery.
納期: 1～3日以内に出荷
- Barcode:
Fixing and grounding wires to the enclosure simultaneously.
Made of 66 nylon + nickel plating, compatible with M4 screws. For noise suppression in broadcasting, video, and medical equipment.
1
Features
| Simultaneous fixing & grounding | Securely fixes wires (cables, wiring) while grounding conductive noise to the enclosure. |
|---|---|
| 66 Nylon - No heat retention | Made of nylon, so it does not retain heat. The clamp part is almost perfectly round and will not damage wires. |
| Extensive size range | Available in 6 sizes from DN-3S to DN-10S to fit cables perfectly. |
| Industries served | Noise suppression applications in broadcasting equipment, video equipment, medical equipment, etc. |
■ Sales
- Available for individual purchase from 1 unit
■ Installation Method
- Fixed to the enclosure/sheet metal with M4 screws
- Clamp the cable for grounding
2
Download Materials
3
Specifications
| Material | 66 Nylon + Electroless Nickel Plating |
|---|---|
| Standard | UL94 V-0 (Nylon) |
| Applicable screw | M4 |
4
Size List
※ DN-2S has been discontinued due to size consolidation.
| Part No. | Inner diameter when fixed D(mm) | L(mm) | W(mm) | T(mm) | D1(mm) |
|---|---|---|---|---|---|
| DN-3S | 4.5 | 9.5 | 9.3 | 0.9 | 4.3 |
| DN-4S | 6.2 | 10.4 | |||
| DN-5S | 7.5 | 11.5 | 1.0 | ||
| DN-6S | 10.0 | 12.8 | |||
| DN-8S | 12.2 | 15.4 | |||
| DN-10S | 14.5 | 16.6 |
Unit: mm
5
Price List
※ All prices are per piece (excluding tax). Available for purchase from 1 unit.
| Part No. | Inner Diameter When Fixed (mm) | List Price | 10 pcs | 100 pcs |
|---|---|---|---|---|
| DN-3S | 4.5 | 160 | 138 | 99 |
| DN-4S | 6.2 | 160 | 138 | 99 |
| DN-5S | 7.5 | 160 | 138 | 99 |
| DN-6S | 10.0 | 160 | 138 | 99 |
| DN-8S | 12.2 | 168 | 140 | 100 |
| DN-10S | 14.5 | 168 | 140 | 100 |
Inquire about this product / Request a sample
Our expert staff will provide thorough support, including size selection and noise suppression consultations.
