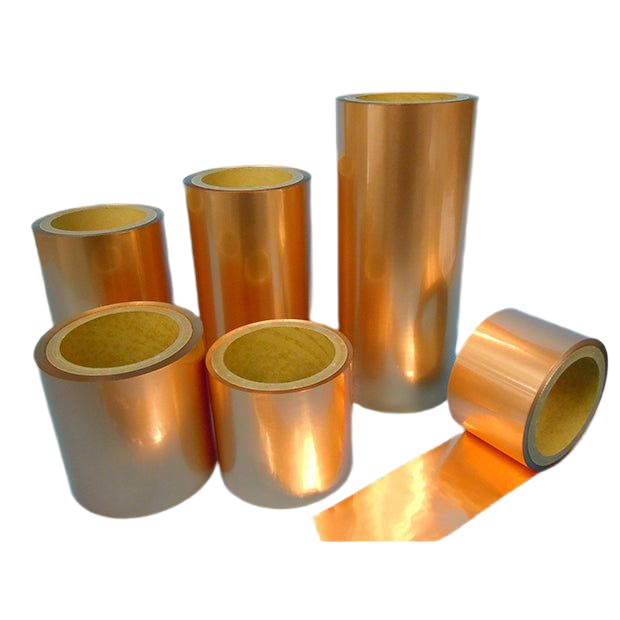

Shielded copper foil tape [CD]

$29.00 $39.00

Tax included. Shipping calculated at checkout.

在庫: あり

As of 12/24, CD-3592-100 is out of stock and the lead time will be approximately one month.

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

1. Features 2. Download Materials 3. Specifications 4. Sizes 5. Price List

Features

Highly Conductive and Specially Processed	Exhibits high conductivity by wrapping shield copper foil tape. Insulating material adhered to the back.
Multi-purpose Shielding	Can be used for electromagnetic shielding, static electricity removal, grounding, and electrode fixation.
Wear-resistant and Bendable	Strong against bending and flexing, with high wear resistance. Can be applied to casings and sheet metal parts.
Slit Processing and Custom Manufacturing	Available in various widths through slitting. Custom manufacturing, such as large noise reduction sheets for nuclear power plants, is also available.
Industries Used In	Automotive, broadcasting equipment, video equipment, sensors, inspection devices, power generation devices, control equipment, machine tools, molding machines, etc.

■ Sales Information

Sold in units of 10m (50m will be delivered as 5 rolls of 10m).
Cut pieces under 100m may wrinkle during packaging.
Adhesive-backed (double-sided tape on both ends of the insulating side) models have "N" at the end of the model number.

■ Custom Manufacturing Examples

Large noise reduction sheets for nuclear power plants.
Please inquire for special widths and specifications.

📩 Inquire about this product Request Sample / Quote

Download Materials

📄Catalog (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-containment Certificates (PDF)

Specifications

Material	Special Copper Foil Sheet
Standards	RoHS / REACH

Size List

※ Models with adhesive have "N" at the end of the model number (double-sided tape applied to both ends of the insulating side).
※ CD-3555 was discontinued in November 2013.

Part No.	Tape Width (mm)	Thickness (mm)
CD-3510	10	0.026±0.003
CD-3520	20
CD-3565	65
CD-3575	75
CD-3592	92
CD-35109	109
CD-35124	124
CD-35155	155
CD-35186	186
CD-35248	248
CD-35340	340

Unit: mm

Price List

※ All prices are per meter (excluding tax). ⇒How to read the price list
※ Sold in units of 10m. 50m will be delivered as 5 rolls of 10m.
※ Cut pieces under 100m may wrinkle during packaging.
※ Adhesive-backed (double-sided tape on both ends of the insulating side) models have "N" at the end of the model number.

■ Without Adhesive

Part No.	List Price	10m	1 Roll (100m)
CD-3510	100	—	41
CD-3520	117	—	85
CD-3565	347	313	209
CD-3575	470	423	282
CD-3592	570	513	342
CD-35109	809	729	486
CD-35124	824	742	495
CD-35155	1,100	990	660
CD-35186	1,381	1,243	829
CD-35248	1,854	1,661	1,107
CD-35340	2,388	2,149	1,433

■ With Adhesive (N type)

Part No.	List Price	10m	1 Roll (100m)
CD-3510N	330	300	180
CD-3518N	396	360	216
CD-3520N	440	400	240
CD-3565N	1,100	1,000	590
CD-3575N	1,210	1,100	660
CD-3592N	1,265	1,150	690
CD-35109N	1,430	1,300	780
CD-35124N	1,430	1,300	780
CD-35155N	1,595	1,450	870
CD-35186N	1,815	1,650	990
CD-35248N	2,178	1,980	1,185
CD-35340N	3,080	2,800	1,680

Inquire about this product / Request a sample

Our expert staff will provide careful support for consultations on width and specifications, as well as custom manufacturing of large noise reduction sheets.

📩 Inquiry Form Request Sample / Quote
