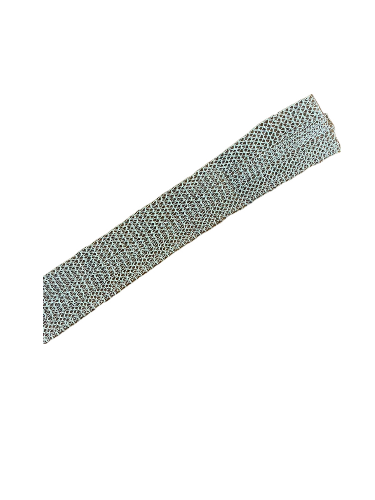

Shield mesh tube [DKM-25]
$5.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
Knitted tubular braid, highly flexible.
Improved shielding effectiveness with spiral winding of ground wire and shield.
1
Features & Case Studies
| Knitted tubular braid | Mesh shape provides excellent corrosion resistance, flexibility, and extensibility, and can be soldered. |
|---|---|
| High shielding effectiveness | Shielding effectiveness improves when wound spirally over a cable, overlapping by about 1/2. The tip can be twisted, a ring terminal crimped, and used as a ground wire. |
| Industries Adopted | Railway vehicles, machine tools, measuring instruments, data centers, etc. |
📊 Case Studies
Manufacturer Adopted
Molding machine manufacturerSituation Before Adoption
Since 2015, shield tubes were used for noise countermeasures on servo amplifier power cables, but a ground wire became necessary to improve grounding effectiveness. They were considering a more flexible alternative to conventional flat braids.Effect of Adoption
DKM tube enabled flexible grounding. The tip was twisted, a ring terminal crimped, and used by spirally winding it around the shield tube. The grounding area increased, and the grounding effectiveness improved significantly.■ Sales
- Cut sales from 1m
■ Related Products
- Braided shield sleeves are FLS Sleeve
- Conductive braided sleeves (post-installation) are FLSM Sleeve
2
Download Materials
3
Specifications
| Material | Tin-plated soft copper wire |
|---|---|
| Operating Temperature Range | -20℃ to 125℃ (Melting point 1064℃) |
| Standard | RoHS2 |
| Standard Color | Silver |
4
Size List
※ Due to the braided tube nature, the flat width and other dimensions may vary slightly depending on the lot.
| Part Number | Natural Flat Width (mm) | Thread Diameter (mm) | Standard Length (m) |
|---|---|---|---|
| DKM-25 | 25 | 0.12 | 50 |
Unit: mm
5
Price List
※ All prices are per meter (excluding tax).
| Part Number | Natural Diameter (mm) | 1 Roll (m) | List Price | 1m | 5m | 50m |
|---|---|---|---|---|---|---|
| DKM-25 | 25 | 50 | 643 | 600 | 482 | 282 |
Inquire About This Product / Request Sample
Our expert staff will provide thorough support for your inquiries regarding grounding wires, shielding applications, size selection, and more.
