Braided tube color: 9 colors in stock [FLC]

Braided tube color: 9 colors in stock [FLC]

$2.00

Tax included. Shipping calculated at checkout.

在庫: あり

As of 4/16, the FLC-9OR-150, FLC-19R-75, FLC-19BL-75, FLC-19P-75, and FLC-25OR-75 are out of stock and will have a lead time of approximately one month.

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

1. Features 2. Download Materials 3. Specifications 4. Sizes 5. Price List

Features

UL224・FAR25・9 Colors	UL94V-0・FAR25・CSA certified (UL File No:E347759)・Railway flame retardancy test passed. 9 standard colors: clear, grey, blue, red, orange, green, yellow, purple, white.
Non-Halogen・3x Expansion	Non-halogen product. Can expand to more than twice its natural diameter. Can cover unevenness of connectors.
Coloring・Identification	Available in many colors. Can be chosen for various uses, identification, and decoration purposes. Custom colors (earth colors, tiger stripes) are also available.
Industries Adopted	Railway vehicles, automobiles, machine tools, amusement equipment, etc.

📊 Adoption Cases

Manufacturer

Construction machinery manufacturer

Situation before adoption

From 2019. It was necessary to decorate hoses and cables to match the main body color for custom machines for overseas markets. Coloring materials was costly, and custom cable colors were difficult to adopt due to large lot sizes.

Effect of adoption

By using FLC orange, the color of the target object could be unified. Customization of cables and hoses became unnecessary.

＊For more detailed adoption cases and effects, please contact us →

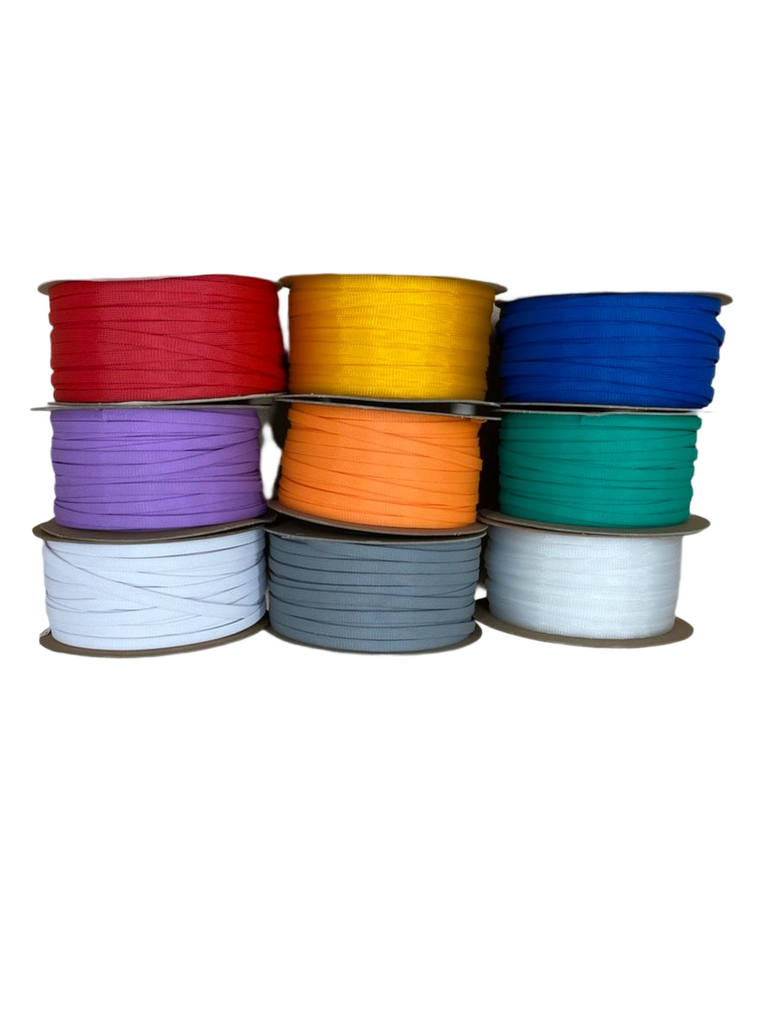

■ Color Variations (9 Standard Colors)

■ Chemical Resistance

■ Sales

Available for purchase from 1m
Custom sizes and softness can be manufactured
Examples of custom manufacturing: custom colors for medical devices and amusement equipment, ultra-fine braids for optical fibers, etc.

■ Related Products

Black is FL Tube Black
Type that doesn't fray easily when cut with scissors is NFL Tube

📩 Inquire about this product Request sample/quote

Download Materials

📄Catalog (PDF) 📊Product Selection Chart (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-Containment Certificates (PDF)

Specifications

Material	Polyethylene terephthalate (PET)
Operating Temperature Range	-70℃ to 125℃
Standard Colors	Clear, Grey, Blue, Red, Orange, Green, Yellow, Purple, White (9 colors) Custom production colors: Earth colors, Tiger stripes. Black is FL Tube
Standards	UL94V-0 (No:E347759) / FAR25 / Railway Vehicle Material Flame Retardancy Test Passed

Size List

※ Due to the nature of braided tubing, the folded width, etc. may vary slightly depending on the lot.

Part No.	Natural Folded Diameter E(mm)	Max. Expanded Diameter D(mm)	Length per roll (m) L
FLC-3	Approx. 2	Approx. 8	300
FLC-6	Approx. 4	Approx. 14	300
FLC-9	Approx. 9	Approx. 18	150
FLC-12	Approx. 13	Approx. 27	150
FLC-19	Approx. 22	Approx. 40	75
FLC-25	Approx. 28	Approx. 50	75
FLC-30	Approx. 38	Approx. 65	45
FLC-35	Approx. 45	Approx. 75	30
FLC-40	Approx. 50	Approx. 95	30
FLC-45	Approx. 60	Approx. 110	30
FLC-70	Approx. 70	Approx. 140	30

Unit: mm / *FLC-3 and FLC-6 can also be purchased from 300m (1 roll).

Price List

※ All prices are per meter (excluding tax). Please inquire for prices of FLC-3/6/30/35/40/45/70.

Part No.	Natural Folded Diameter	1 Roll (m)	List Price	1m	10m	1 Roll (150m)
FLC-9	Approx. 9mm	150m	284	274	195	137
FLC-12	Approx. 13mm	150m	316	305	218	153

Part No.	Natural Folded Diameter	1 Roll (m)	List Price	1m	1 Roll (75m)
FLC-19	Approx. 22mm	75m	539	520	310
FLC-25	Approx. 28mm	75m	616	594	354

Inquire about this product / Request sample

Our expert staff will provide careful support for color selection, custom colors, and size consultations.

📩 Inquiry Form Request Sample/Quote
