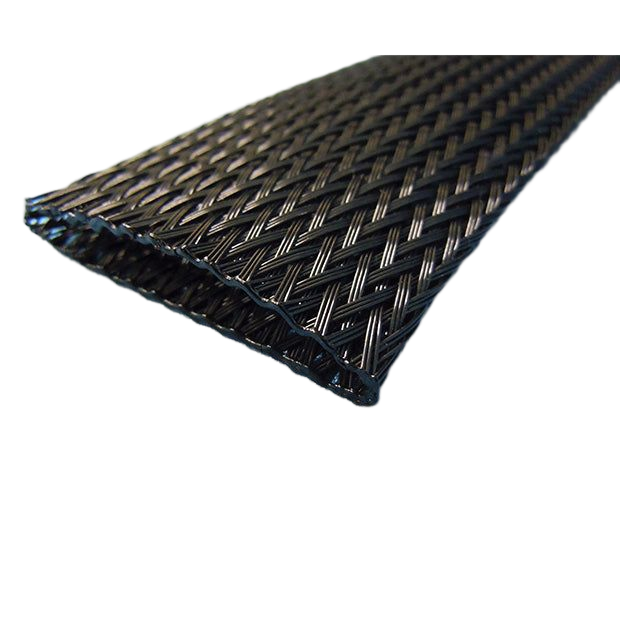

Abrasion-resistant braided sleeving for outdoor use [FLW]

Abrasion-resistant braided sleeving for outdoor use [FLW]

$3.00 $4.00

Tax included. Shipping calculated at checkout.

在庫: あり

FLW-9/25 only

納期: Ships within 1-3 days. FLW-35/45/70/100: Approximately 1-2 months

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

1. Features 2. Download Materials 3. Specifications 4. Sizes 5. Price List

Features

High abrasion resistance & Thick braid	The braid is thicker than conventional FL tubes, providing excellent abrasion resistance. Highly elastic and smooth, making installation easy.
Corrosion resistance to oil and seawater	Strong resistance to erosion from oil and seawater, high tensile strength, and flexibility. Ideal for movable protection around engines and on ships.
UL certified, heat-resistant, weather-resistant	UL certified (File No: E347759) and UL 94 V-0. Excellent heat and weather resistance for outdoor use.
Industries of application	Marine equipment, construction machinery, heavy equipment, machine tools, drones, surveillance cameras, etc.

📊 Case Studies

Adopting Manufacturer

Surveillance camera manufacturer

Situation before adoption

From 2019 onwards, we were looking for a cable protection material for installations at high positions where maintenance is difficult. We had been unable to find a suitable tube that combined bird and animal protection, weather resistance, and strength.

Effect of adoption

FLW tubes excelled in weather resistance, flexibility, and abrasion resistance, perfectly meeting the purpose. Assembly efficiency also improved by delivering them cut to specified lengths.

＊For more detailed case studies and effects, please contact us →

■ Sales

Available for purchase from 1m (FLW-35/45/70/100 are custom-made per roll)
Large diameter 100φ and transparent colors also available for custom order from 1 roll
Fraying may occur after cutting with scissors. We recommend using a soldering iron for melting or a special cutter.

■ Related Products

For types that can be installed afterward, see FLM-FR Tube
For fray-resistant types, see NFL Tube

📩 Inquire about this product Request samples/quotations

Download Materials

📄Catalog (PDF) ✅RoHS2 Certificate (PDF)

Specifications

Material	Polyester monofilament
Operating temperature range	-70℃〜125℃
Standard	UL 94 V-0・RoHS
Color	Black

Size List

※ Due to the nature of braided tubes, the folded width may vary slightly depending on the lot.

Part No.	Max. Expanded Dia. D(mm)	Folded Width E(mm)	Wall Thickness (mm)	Yarn Dia. (mm)	Packing Unit
Part No.	Max. Expanded Dia. D(mm)	Folded Width E(mm)	Wall Thickness (mm)	Yarn Dia. (mm)	m/roll
FLW-9	Approx. 20	Approx. 10	Approx. 0.97	Approx. 0.38	150
FLW-25	Approx. 38	Approx. 25			75
FLW-35	Approx. 50	Approx. 32			75
FLW-45	Approx. 75	Approx. 51			60
FLW-70	Approx. 100	Approx. 76			30
FLW-100	Approx. 140	Approx. 102			30

Unit: mm

Price List

※ All prices are per meter (excluding tax). ⇒How to read the price list
※ FLW-35, 45, 70, 100 are made-to-order per roll.

Part No.	1 Roll (m)	List Price	1m	5m	10m	50m	1 Roll (150m)
FLW-9	150m	434	412	358	326	282	239

Part No.	1 Roll (m)	List Price	1m	5m	15m	1 Roll (75m)	2 Rolls (150m)
FLW-25	75m	868	824	716	608	478	434
FLW-35	75m	1,085	—	—	—	597	543

Part No.	1 Roll (m)	List Price	1m	10m	1 Roll (60m)	5 Rolls (300m)
FLW-45	60m	1,952	—	—	1,074	879

Part No.	1 Roll (m)	List Price	1m	10m	1 Roll (30m)	10 Rolls (300m)
FLW-70	30m	2,386	—	—	1,312	1,014
FLW-100	30m	2,928	—	—	1,610	1,245

Inquiries about this product / Sample Requests

Our expert staff will provide thorough support for size selection, large-diameter custom orders, and special color consultations.

📩 Inquiry Form Request Samples/Quotes
