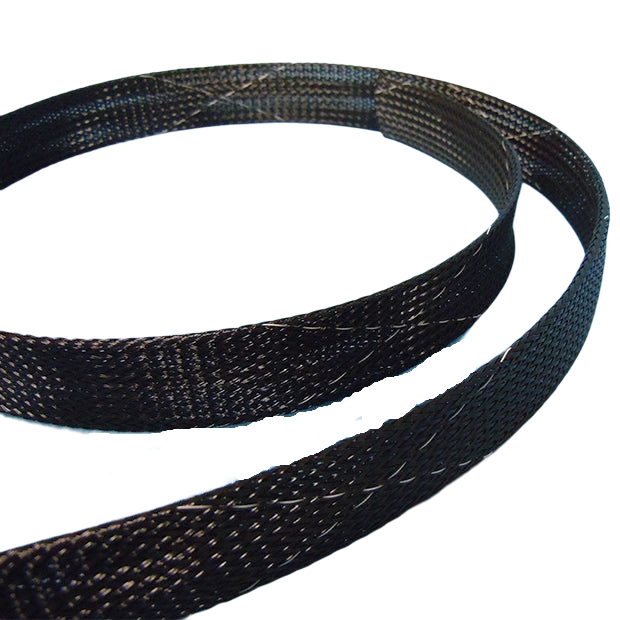

UL VW-1 Braided Sleeving [FL-FR]
$184.00
$388.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: About a month
- Barcode:
1
Features
| UL 224 VW-1 Certified / Self-extinguishing | UL 224 VW-1 (No:E347759) certified. Unlike conventional FL tubing, this is a self-extinguishing braided tubing that has acquired the VW-1 standard. |
|---|---|
| Identifiable from FL tubing with white cross-lines | Marked with white cross-lines to distinguish it from FL tubing. Easily identifiable at a glance with white cross-lines on black. |
⚠️ Caution when cutting: The cut end will fray after being cut with scissors. Please use a soldering iron for welding or a dedicated cutter.
✂️ If you are looking for a type that is less prone to fraying when cut with scissors, please consider NFL tubing.
✂️ If you are looking for a type that is less prone to fraying when cut with scissors, please consider NFL tubing.
■ Related Products
- FL Tubing (Standard type, without UL VW-1)
- NFL Tubing (Fray-resistant type)
- Dedicated Cutter
■ Sales Information
- Sold in rolls
2
Download Materials
3
Specifications
| Material | Polyethylene terephthalate |
|---|---|
| Operating Temperature Range | -70℃ to 125℃ |
| Standard | UL 224 VW-1 / No:E347759 |
| Standard Color | Black (white cross-line) |
4
Size List
| Model Number | Natural Flat Diameter E approx. (mm) | Max Expanded Diameter D1 approx. (mm) |
|---|---|---|
| FL-3FR | 2 | 8 |
| FL-6FR | 4 | 14 |
| FL-9FR | 9 | 18 |
| FL-12FR | 13 | 27 |
| FL-19FR | 22 | 40 |
| FL-25FR | 28 | 50 |
| FL-30FR | 38 | 65 |
| FL-35FR | 45 | 75 |
| FL-40FR | 50 | 95 |
| FL-45FR | 60 | 110 |
| FL-70FR | 70 | 140 |
※ Due to it being braided tubing, the flat diameter may vary slightly by lot.
Unit: mm
5
Price List
※ All prices are per meter (excluding tax). ⇒How to read the price list
FL-3FR・6FR (1 roll of 300m)
| Model Number | Natural Diameter | Length per roll (m) | List Price | Price per roll (300m) |
|---|---|---|---|---|
| FL-3FR | Approx. 2.0mm | 300 | 129 | 87 |
| FL-6FR | Approx. 4.0mm | 300 | 184 | 124 |
FL-9FR・12FR (1 roll of 150m) / FL-19FR・25FR (1 roll of 75m)
| Model Number | Natural Diameter | Length per roll (m) | List Price | Price per roll |
|---|---|---|---|---|
| FL-9FR | Approx. 9.0mm | 150 | 265 | 189 |
| FL-12FR | Approx. 13.0mm | 150 | 441 | 315 |
| FL-19FR | Approx. 22.0mm | 75 | 529 | 416 |
| FL-25FR | Approx. 28.0mm | 75 | 903 | 710 |
FL-30FR (1 roll of 45m)
| Model Number | Natural Diameter | Length per roll (m) | List Price | Price per roll (45m) |
|---|---|---|---|---|
| FL-30FR | Approx. 38.0mm | 45 | 1,421 | 1,071 |
FL-35FR〜70FR (1 roll of 30m)
| Model Number | Natural Diameter | Length per roll (m) | List Price | Price per roll (30m) |
|---|---|---|---|---|
| FL-35FR | Approx. 45.0mm | 30 | 1,477 | 1,113 |
| FL-40FR | Approx. 50.0mm | 30 | 1,867 | 1,407 |
| FL-45FR | Approx. 60.0mm | 30 | 1,979 | 1,491 |
| FL-70FR | Approx. 70.0mm | 30 | 3,579 | 2,386 |
Inquiries and Sample Requests for this Product
Our expert staff will provide thorough support for size selection, application consultations, and more.
