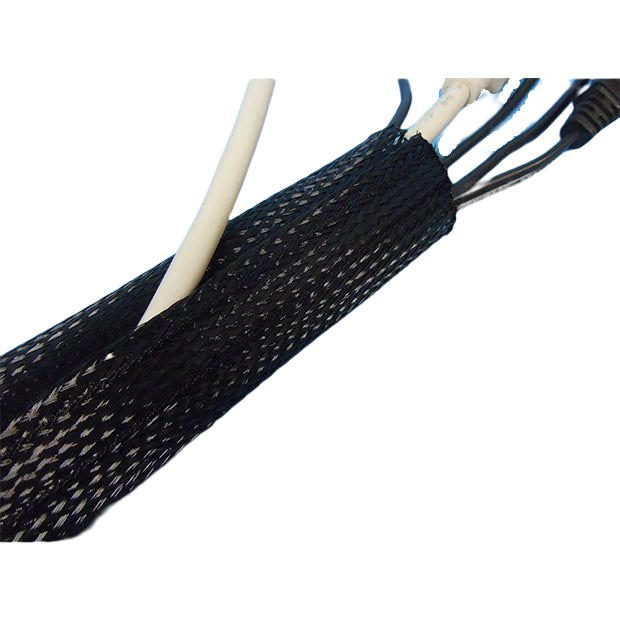

Post-installation Velcro braided tube [FLR]

Post-installation Velcro braided tube [FLR]

$12.00 $13.00

Tax included. Shipping calculated at checkout.

在庫: あり

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

1. Features 2. Download Documents 3. Specifications 4. Sizes 5. Price List

Features

Easy to install and remove with hook-and-loop fasteners	Easy to install and remove with hook-and-loop fasteners. Easy to add wires mid-way. Ideal for intermediate connection applications in data centers, etc.
More than 2x expansion / Compatible with connector steps	Expands to more than twice its natural diameter. Can firmly secure areas with protruding connectors due to its excellent elasticity.
UL Certified	UL94V-0 certified (File No:E347759). Uses polyester monofilament with a melting point of 250°C.
Industries Adopted	Railway vehicles, automobiles, machine tools, amusement equipment, audio-visual equipment, etc.

■ Examples of Use

📊 Adoption Record

Manufacturer adopted by

Data Center

Situation before adoption

Since 2017. The conventional method of processing cable mid-span joints with sleeves + electrical tape + tubes was too labor-intensive, requiring simplification of materials and reduction of working time.

Effects of adoption

Changing to braided tubing significantly improved workability. It could be wrapped later with hook-and-loop fasteners, and the elasticity of the braid allowed it to fit without problems even on bulky parts.

＊Please inquire for more detailed adoption cases and effects →

■ Sales

Available for purchase from 1m
Custom sizes and softness can be produced
Fraying will occur after scissor cutting. Use soldering iron fusing or a specialized cutter.

■ Related Products

For post-installation, shape-memory type, see FLM-FR Tube
For standard type, see FL Tube

📩 Inquire about this product Request Sample / Quote

Download Documents

📄Catalog (PDF) 📊Product Selection Table (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-Containment Certificates (PDF) 📦Packaging Specifications (PDF)

Specifications

Material (braided part)	Polyester monofilament
Material (opening/closing part)	Nylon hook-and-loop fastener
Operating temperature range	-70°C to 125°C
Melting point	250°C
Standard	UL94V-0 (File No:E347759)
Standard color	Black

Size List

※ Due to the nature of braided tubing, the folded width, etc., may vary slightly depending on the lot.

Product Number	Minimum contracted diameter D (mm)	Maximum expanded diameter (mm)	Application range (mm)
FLR-5	Approx. 5	Approx. 15	3~15
FLR-10	Approx. 10	Approx. 20	8~25
FLR-20	Approx. 20	Approx. 44	15~40
FLR-40	Approx. 40	Approx. 70	35~65

Unit: mm

Price List

※ All prices are per 1m (excluding tax). ⇒How to read the price list

Product Number	Natural Diameter	1 Roll (m)	List Price	1m	5m	15m	1 Roll (30m)
FLR-5	Approx. 5mm	30m	1,802	1,689	1,577	1,464	1,307
FLR-10	Approx. 10mm	30m	2,107	1,976	1,844	1,712	1,528
FLR-20	Approx. 20mm	30m	3,054	2,863	2,672	2,481	2,214
FLR-40	Approx. 40mm	30m	3,206	3,006	2,806	2,605	2,325

Inquire about this product / Request sample

Our expert staff will provide thorough support for size selection, routing, custom specifications, and more.

📩 Inquiry Form Request Sample / Quote
