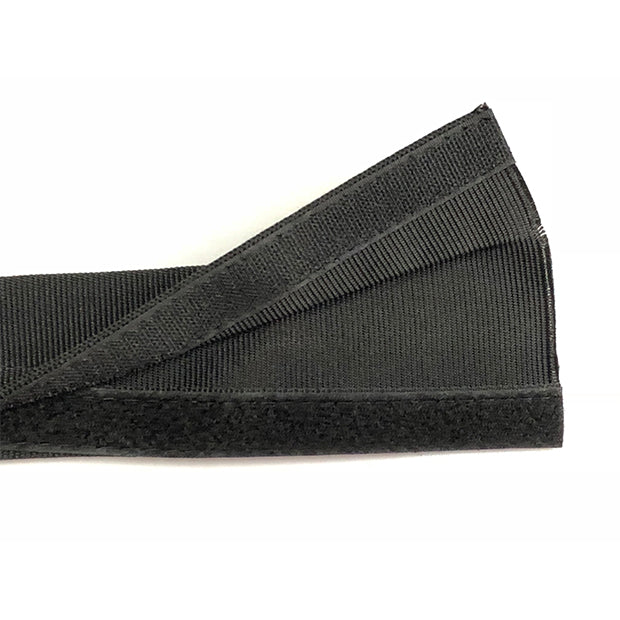

Post-insertion hydraulic hose protection tube [YHKM]

$6.00 $7.00

Tax included. Shipping calculated at checkout.

在庫: あり

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

1. Features 2. Download Materials 3. Specifications 4. Sizes 5. Price List

Features

Prevents hydraulic oil bursts	The fine, seamless weave prevents hydraulic oil bursts. Can be used as a protective cover for hydraulic rubber hoses and hydraulic hoses in industrial machinery.
Weather-resistant, heat-resistant, chemical-resistant, flame-retardant	A protective sleeve with excellent weather resistance, heat resistance, chemical resistance, and flame retardancy, as well as high durability and abrasion resistance.
Post-installation possible, lightweight	Can be installed on hoses after crimping. Very lightweight, reducing work time compared to sun hoses, etc.
Track Record	Heavy equipment manufacturers, construction equipment leasing companies (construction sites, disaster sites). For the non-Velcro type, see YHK Tube

■ Magnified view of weave

■ Hose size selection chart

*4bu can also be bundled with YHKM-30. *The hose's outer diameter is used as a reference, and the size of fittings and other parts is not included.

📊 Track Record

Adopting manufacturer

Waste treatment equipment manufacturer

Situation before adoption

From 2022 onwards. The hydraulic hose of large-scale waste treatment equipment had potential for contact with other moving parts, requiring protection. As the hoses were already crimped, a post-installable, large-diameter tube of around 100φ was sought.

Effect of adoption

YHKM offers a wide range of sizes, and its nylon cover is highly flexible, making it suitable for areas requiring bending.

＊Please contact us for more detailed case studies and effects →

■ Sales

Available for purchase from 1m
Splices may occur for lengths of 10m or more
Sewing process for end-face and Velcro reinforcement (custom order)
Changes to Velcro width also available as custom orders

■ Related Products

YHK Tube (standard type without Velcro)

📩 Inquire about this product Request sample/quote

Download Materials

📄Catalog (PDF) 🔗Product Feature Page 📊Product Selection Chart (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-Inclusion Certificates (PDF) 📦Packaging Specifications (PDF)

Specifications

Material	Nylon multifilament
Operating temperature range	-60℃ to 125℃
Melting point	220±10℃
Flame retardancy	Equivalent to VW-1
Standard color	Black

Size List

Part Number	Flat Width W(mm)	Velcro Width (mm)	Max. Bundling Diameter D(mm)	Packaging Unit (m/roll)
YHKM-30	30	20	18	20
YHKM-50	50		31
YHKM-60	60		37
YHKM-80	80		50
YHKM-100	100		62
YHKM-115	115		72
YHKM-145	145		90

Unit: mm / Tolerance ±5mm

Price List

※ All prices are per meter (excluding tax).

Part Number	Width (mm)	1 Roll (m)	List Price	1m	5m	10m	1 Roll (20m)	5 Rolls (100m)
YHKM-30	30	20	792	792	665	633	586	491
YHKM-50	50	20	1,028	1,028	900	814	686	600
YHKM-60	60	20	1,225	1,225	1,071	969	817	715
YHKM-80	80	20	1,594	1,594	1,396	1,263	1,063	931
YHKM-100	100	20	1,927	1,927	1,686	1,526	1,285	1,125
YHKM-115	115	20	2,057	2,057	1,728	1,645	1,522	1,275
YHKM-145	145	20	2,807	2,807	2,457	2,223	1,872	1,638

Inquire about this product / Request sample

Our expert staff will provide thorough support for size selection, sewing processing, and changes to Velcro specifications.

📩 Inquiry Form Request sample/quote
