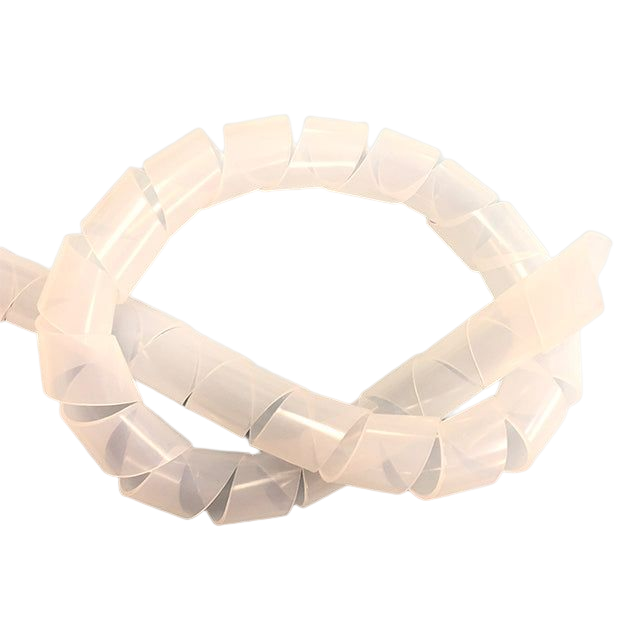

Spiral tube [DP]
Spiral tube [DP]

    Spiral tube [DP]

    $5.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    6/3時点　DP-15B-50/DP-20B-25は欠品中のため納期2－3週間となります。
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:
    1. Features 2. Download Materials 3. Specifications 4. Sizes 5. Price List
    Spiral Tube / Spiral Tube

    Spiral tube for branching and movable wiring. Available in two colors: DP (milky white) and DP-B (black, weather-resistant). Large diameters of 25φ and above are in stock.

    1

    Features

    Wrap-around and flexible Used by wrapping around wire harnesses. Highly flexible and easy to wrap.
    Ideal for branching and movable wiring Effective for wiring bundles with branch lines, movable wiring, and protecting high-pressure hoses.
    Packaged in a dedicated box, easy to use up Packaged in a dedicated box for easy use. Large diameter types of 25φ and above are also in stock.
    Track Record Cable protection for construction machinery and heavy equipment, protection for door openings of panel manufacturers, and protection for high-pressure hoses.
    ■ 2-Color Lineup
    • DP: Milky white (Polyethylene)
    • DP-B: Black (Weather-resistant type)
    ■ Track Record
    • Cable protection for construction machinery and heavy equipment
    • Protection for door openings of panel manufacturers
    • Protection for high-pressure hoses
    📩 Inquire about this product Request sample/quote
    2

    Download Materials

    📄Catalog (PDF) 📊Product Selection Chart (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-Inclusion Certificates (PDF)
    3

    Specifications

    Material Low-density polyethylene
    Operating temperature range -25℃ to 50℃
    Standard color Milky white (DP)・Black Weather-resistant type (DP-B)
    4

    Size List

    DPチューブ サイズ図
    ■ DP (Milky White, Polyethylene)
    Model No. Inner Dia. D(mm) Outer Dia. D1(mm) Wall Thickness T(mm) Pitch P(mm) Suitable Bundle Dia. C(mm) 1 roll (m)
    DP-2.6 2.6 4.0 0.7 8.0 3〜8 100
    DP-4 4.0 5.4 0.7 8.0 5〜12 100
    DP-6 6.0 7.4 0.7 10.0 7〜18 100
    DP-8 8.0 9.4 0.7 12.0 9〜25 50
    DP-9 9.0 10.6 0.8 12.0 10〜28 50
    DP-10 10.0 11.6 0.8 12.0 11〜30 50
    DP-12 12.0 14.0 1.0 15.0 13〜36 50
    DP-15 15.0 17.4 1.2 16.0 16〜45 50
    DP-20 20.0 22.8 1.5 22.0 21〜60 25
    DP-25 25.0 27.8 1.5 28.0 26〜75 20
    DP-30 30.0 34.0 2.0 35.0 32〜100 10
    DP-40 40.0 44.0 2.3 45.0 43〜150 10
    ■ DP-B (Black, Weather-resistant type)
    Model No. Inner Dia. D(mm) Outer Dia. D1(mm) Wall Thickness T(mm) Pitch P(mm) Suitable Bundle Dia. C(mm) 1 roll (m)
    DP-2.6B 2.6 4.0 0.7 8.0 3〜8 100
    DP-4B 4.0 5.4 0.7 8.0 5〜12 100
    DP-6B 6.0 7.4 0.7 10.0 7〜18 100
    DP-8B 8.0 9.4 0.7 12.0 9〜25 50
    DP-9B 9.0 10.6 0.8 12.0 10〜28 50
    DP-10B 10.0 11.6 0.8 12.0 11〜30 50
    DP-12B 12.0 14.0 1.0 15.0 13〜36 50
    DP-15B 15.0 17.4 1.2 16.0 16〜45 50
    DP-20B 20.0 22.8 1.5 22.0 21〜60 25
    DP-25B 25.0 27.8 1.5 22.0 26〜75 20
    DP-30B 30.0 34.0 2.0 35.0 32〜100 10
    DP-40B 40.0 44.0 2.3 45.0 43〜150 10

    Unit: mm

    5

    Price List

    ⚠️ DP-50 will be discontinued as of December 2024.
    ※ All prices are per meter (excluding tax).
    DP (Milky white) — DP-2.6 to 6: List price + 10m/50m/100m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 10m 50m 100m (1 roll)
    DP-2.6 2.6 100 63 55 39 20
    DP-4 4.0 100 75 66 47 24
    DP-6 6.0 100 96 84 60 30
    DP (Milky white) — DP-8 to 15: List price + 5m/10m/50m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 5m 10m 50m (1 roll)
    DP-8 8.0 50 114 100 86 36
    DP-9 9.0 50 126 110 95 40
    DP-10 10.0 50 195 171 146 61
    DP-12 12.0 50 219 192 164 69
    DP-15 15.0 50 270 236 203 85
    DP (Milky white) — DP-20: List price + 1m/5m/25m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 1m 5m 25m (1 roll)
    DP-20 20.0 25 474 415 356 178
    DP (Milky white) — DP-25: List price + 1m/5m/20m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 1m 5m 20m (1 roll)
    DP-25 25.0 20 612 536 459 230
    DP (Milky white) — DP-30・40: List price + 5m/10m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 5m 10m (1 roll)
    DP-30 30.0 10 2,790 1,240 930
    DP-40 40.0 10 3,960 1,760 1,320
    DP-B (Black, weather-resistant) — DP-2.6B to 6B: List price + 10m/50m/100m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 10m 50m 100m (1 roll)
    DP-2.6B 2.6 100 75 66 47 24
    DP-4B 4.0 100 89 78 56 28
    DP-6B 6.0 100 127 111 79 40
    DP-B (Black, weather-resistant) — DP-8B to 15B: List price + 5m/10m/50m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 5m 10m 50m (1 roll)
    DP-8B 8.0 50 137 120 103 43
    DP-9B 9.0 50 151 132 113 47
    DP-10B 10.0 50 230 201 173 72
    DP-12B 12.0 50 264 231 198 83
    DP-15B 15.0 50 324 283 243 101
    DP-B (Black, weather-resistant) — DP-20B: List price + 1m/5m/25m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 1m 5m 25m (1 roll)
    DP-20B 20.0 25 570 499 428 214
    DP-B (Black, weather-resistant) — DP-25B: List price + 1m/5m/20m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 1m 5m 20m (1 roll)
    DP-25B 25.0 20 736 644 552 276
    DP-B (Black, weather-resistant) — DP-30B・40B: List price + 5m/10m (1 roll)
    Model No. Inner Dia.(φ) 1 roll (m) List Price 5m 10m (1 roll)
    DP-30B 30.0 10 2,970 1,320 990
    DP-40B 40.0 10 4,320 1,920 1,440

    Inquire about this product / Request sample

    Our expert staff will provide thorough support, including selecting sizes, colors, and consulting on large diameter types.

    📩 Inquiry Form Request sample/quote
