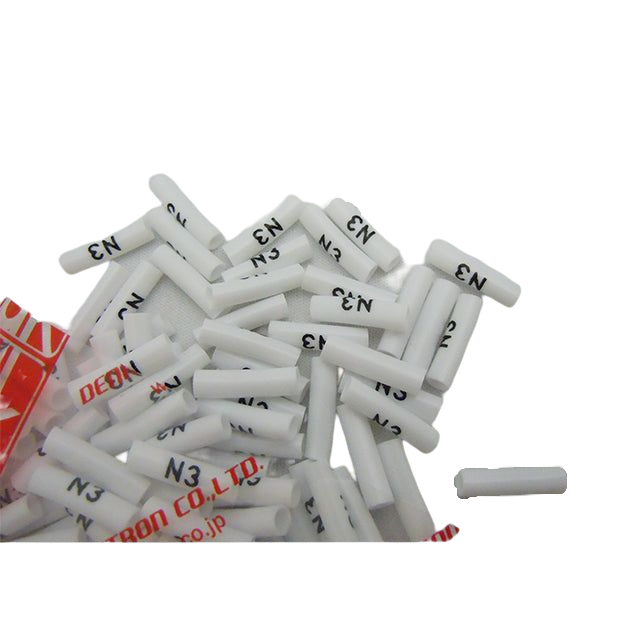

Mark tube with specified characters printable [MTB]
$6.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
1
Features
| Clear and Indelible Marking | Since printing is done on non-marking tubes (tubes without pre-printed product names, specifications, etc.), the markings stand out clearly and are not easily erased. |
|---|---|
| Non-Shrinking, Structure Suitable for Insulation Protection | Being a non-shrinking type, it is also suitable for insulation protection of wire materials. Markings can be made on tubes from 2φ diameter. |
| Custom Text / Large Project Support | Supports custom text, marks, and small-batch, high-variety orders for large projects. Larger sizes in length and inner diameter can also be custom-produced. |
■ How to Specify Printing
Please enter the text to be printed on the mark tube in the inquiry field that appears when ordering.
Only one type of marking is available per bag.
■ Guide for Printed Characters and Length (3mm character width)
・8mm → Up to 2 characters allowed ・10mm → Up to 3 characters allowed ・15mm → Up to 5 characters allowed
※ The following conditions require a separate quotation: [Inner diameter 6.2φ or more / Tube length 20mm or more / Per piece / 6 characters or more]
Please enter the text to be printed on the mark tube in the inquiry field that appears when ordering.
Only one type of marking is available per bag.
■ Guide for Printed Characters and Length (3mm character width)
・8mm → Up to 2 characters allowed ・10mm → Up to 3 characters allowed ・15mm → Up to 5 characters allowed
※ The following conditions require a separate quotation: [Inner diameter 6.2φ or more / Tube length 20mm or more / Per piece / 6 characters or more]
■ Sales
- Available for purchase from 1 bag (100 pieces)
- Custom production: Supports long lengths, large inner diameters, custom text, and marks
- Also supports small-batch, high-variety orders for large projects
■ Track Record
- Electrical wiring identification
- Wiring identification for marine and large-scale plants
2
Download Materials
Catalog (PDF)
RoHS2 Certificate (PDF)
Other Non-Containment Certificates (PDF)
FAX Quote Request Form (PDF)
3
Specifications
| Material | Soft PVC |
|---|---|
| Operating Temperature Range | -20℃ to 60℃ |
4
Size Selection Chart
| For Wires | For Crimp Terminal Insulation | ||||
|---|---|---|---|---|---|
| Wire (sq) | Wire Outer Diameter (mm) | Tube Inner Diameter (φ) | Wire (sq) | Terminal Outer Diameter (mm) | Tube Inner Diameter (φ) |
| 0.30 | 1.8 | 2.0 | 0.30 | — | — |
| 0.5 | 2.6 | 2.8 | 0.5 | 2.7 | 2.8 |
| 0.75 | 2.8 | 3.0 | 0.75 | — | — |
| 1.25 | 3.0 | 3.2 | 1.25 | 3.2 | 3.4・3.5 |
| 2.0 | 3.4 | 3.6 | 2.0 | 3.9 | 4.0 |
| 3.5 | 4.0 | 4.2 | 3.5 | 5.0 | 5.1 |
| 5.5 | 5.0 | 5.1 | 5.5 | 5.4 | 5.5 |
| 8.0 | 6.0 | 6.2 | 8.0 | 6.9 | 7.0 |
| 14.0 | 7.6 | 8.0 | 14.0 | 8.8 | 9.0 |
| 22.0 | 9.2 | 9.5 | 22.0 | 11.3 | 12.0 |
| 38.0 | 11.4 | 12.0 | 38.0 | 13.3 | 14.0 |
| 60.0 | 13.6 | 14.0 | 60.0 | 15.4 | 16.0 |
Unit: mm
5
Price List
※ All prices are per bag (100 pieces) (excluding tax). One type of marking per bag.
Please enter the text to be printed in the inquiry field during checkout. Example: MTB-2.0x8 → Max 2 characters (3mm character width)
※ Separate quotation required for: Inner diameter 6.2φ or more / Length 20mm or more / Per piece / 6 characters or more
Please enter the text to be printed in the inquiry field during checkout. Example: MTB-2.0x8 → Max 2 characters (3mm character width)
※ Separate quotation required for: Inner diameter 6.2φ or more / Length 20mm or more / Per piece / 6 characters or more
| Model No. | Inner Diameter (φ) | Length (mm) | List Price | 1 Bag (100 pieces) |
|---|---|---|---|---|
| MTB-2.0x8 | 2 | 8 | 713 | 594 |
| MTB-2.0x10 | 2 | 10 | ||
| MTB-2.0x15 | 2 | 15 | ||
| MTB-2.5x8 | 2.5 | 8 | ||
| MTB-2.5x10 | 2.5 | 10 | ||
| MTB-2.5x15 | 2.5 | 15 | ||
| MTB-2.8x8 | 2.8 | 8 | ||
| MTB-2.8x10 | 2.8 | 10 | ||
| MTB-2.8x15 | 2.8 | 15 | ||
| MTB-3.0x8 | 3 | 8 | 618 | 515 |
| MTB-3.0x10 | 3 | 10 | ||
| MTB-3.0x15 | 3 | 15 | ||
| MTB-3.2x8 | 3.2 | 8 | ||
| MTB-3.2x10 | 3.2 | 10 | ||
| MTB-3.2x15 | 3.2 | 15 | ||
| MTB-3.4x8 | 3.4 | 8 | ||
| MTB-3.4x10 | 3.4 | 10 | ||
| MTB-3.4x15 | 3.4 | 15 | ||
| MTB-3.5x8 | 3.5 | 8 | ||
| MTB-3.5x10 | 3.5 | 10 | ||
| MTB-3.5x15 | 3.5 | 15 | ||
| MTB-3.6x8 | 3.6 | 8 | ||
| MTB-3.6x10 | 3.6 | 10 | ||
| MTB-3.6x15 | 3.6 | 15 | ||
| MTB-4.0x8 | 4 | 8 | 713 | 594 |
| MTB-4.0x10 | 4 | 10 | ||
| MTB-4.0x15 | 4 | 15 | ||
| MTB-4.2x8 | 4.2 | 8 | ||
| MTB-4.2x10 | 4.2 | 10 | ||
| MTB-4.2x15 | 4.2 | 15 | ||
| MTB-5.0x8 | 5 | 8 | 792 | 660 |
| MTB-5.0x10 | 5 | 10 | ||
| MTB-5.0x15 | 5 | 15 | ||
| MTB-5.1x8 | 5.1 | 8 | ||
| MTB-5.1x10 | 5.1 | 10 | ||
| MTB-5.1x15 | 5.1 | 15 | ||
| MTB-5.5x8 | 5.5 | 8 | ||
| MTB-5.5x10 | 5.5 | 10 | ||
| MTB-5.5x15 | 5.5 | 15 | ||
| MTB-6.0x8 | 6 | 8 | 951 | 792 |
| MTB-6.0x10 | 6 | 10 | ||
| MTB-6.0x15 | 6 | 15 |
Inquire About This Product / Request a Quote
Our expert staff will provide thorough support for inquiries regarding printed text, size selection, custom products, FAX quotes, and more.
