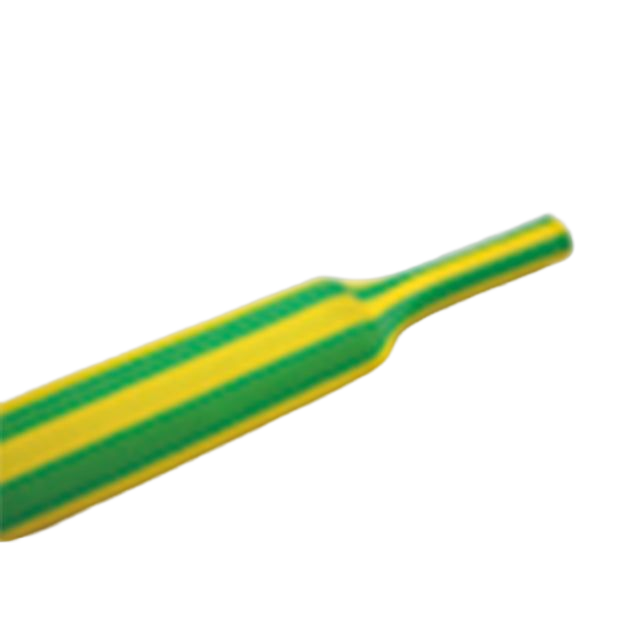

Earth Color Heat Shrink Tubing [SZF2YG]
$13.00
Tax included.
Shipping calculated at checkout.
在庫: あり
As of March 18th, SZF2YG-10.0-1 is out of stock and has a lead time of approximately one month.
納期: 1～3日以内に出荷
- Barcode:
Yellow and green two-color combination.
Abundant sizes from 2φ available in stock for immediate delivery.
1
Features and Track Record
| Resistant to abrasion | The two-color earth-toned design is co-extruded, not painted, making it highly resistant to abrasion. |
|---|---|
| Cost reduction | Can process electrical wires into earth wires, reducing wire stock and cutting costs. |
| UL Certified | UL224 VW-1 |
| Industries served | Harness processing companies, control panel manufacturers, etc. |
📊 Track Record
Manufacturer
Control Panel ManufacturerSituation Before Adoption
Since 2023. Required to change the earth wire color for multi-core cables for CE standards, but the minimum lot for wire manufacturers was very large. As an alternative, heat shrink tubing was applied over the cable.Effect of Adoption
By using YG tubes, only about 10m of standard manufacturer wires were needed, achieving significant cost reduction and shorter delivery times for the overall processing cost.■ Sales
- Sold from 1m x 10 pieces
2
Download Materials
Catalog (PDF) Product Selection Chart (PDF) RoHS2 Certificate (PDF) Other Non-Inclusion Certificates (PDF)
3
Specifications
| Material | Polyolefin |
|---|---|
| Standard | UL224 VW-1 600V (Number: E314714) |
| Shrink Start Temperature | 70℃ (Minimum full recovery: 110℃) |
| Operating Temperature Range | -55℃ to 125℃ |
| Shrink Ratio | 2:1 |
| Rated Voltage | 600V |
| Color | Yellow-Green |
| Property | Test Method | Characteristic Value |
|---|---|---|
| Tensile Strength | ASTM D 2671 | >14MPa |
| Elongation | ASTM D 2671 | >500% |
| Axial Shrinkage | — | 0±5% |
| Eccentricity | ASTM D 2761 | <35% |
| Elongation after thermal aging | 158℃・168 hours | >350% |
| Tensile Strength after thermal aging | >12MPa | |
| Flammability | UL224 VW-1 | Pass |
| Dielectric Strength | ASTM D 2671 | No breakdown |
| Volume Resistivity | ASTM D 2671 | >10¹⁴ Ω・cm |
| Copper Corrosion | UL 224 | Pass |
*The above values are test values and not guaranteed values.
4
Size List
※ Please check the price list for in-stock sizes.
※ Please note that D indicates the inner diameter of the tube, not the flattened width.
※ Please note that D indicates the inner diameter of the tube, not the flattened width.
| Part No. | Pre-shrinkage D Inner Diameter (mm) |
Post-shrinkage | |
|---|---|---|---|
| D1 Inner Diameter (mm) | T Wall Thickness (mm) | ||
| SZF2YG-1.2 | 1.2 | 0.6 | 0.33 |
| SZF2YG-1.6 | 1.6 | 0.8 | |
| SZF2YG-2.0 | 2.0 | 1.0 | 0.42 |
| SZF2YG-2.5 | 2.5 | 1.25 | |
| SZF2YG-3.0 | 3.0 | 1.5 | |
| SZF2YG-3.5 | 3.5 | 1.75 | |
| SZF2YG-4.0 | 4.0 | 2.0 | |
| SZF2YG-5.0 | 5.0 | 2.5 | 0.42 |
| SZF2YG-6.0 | 6.0 | 3.0 | |
| SZF2YG-7.0 | 7.0 | 3.5 | 0.54 |
| SZF2YG-8.0 | 8.0 | 4.0 | |
| SZF2YG-10.0 | 10.0 | 5.0 | |
| SZF2YG-12.0 | 12.0 | 6.0 | |
| SZF2YG-13.0 | 13.0 | 6.5 | 0.62 |
| SZF2YG-16.0 | 16.0 | 8.0 | 0.75 |
| SZF2YG-18.0 | 18.0 | 9.0 | |
| SZF2YG-20.0 | 20.0 | 10.0 | |
| SZF2YG-25.0 | 25.0 | 12.5 | |
| SZF2YG-30.0 | 30.0 | 15.0 | |
| SZF2YG-35.0 | 35.0 | 17.5 | |
| SZF2YG-40.0 | 40.0 | 20.0 | 0.96 |
| SZF2YG-50.0 | 50.0 | 25.0 | 0.97〜1.3 |
| SZF2YG-80.0 | 80.0 | 40.0 | |
| SZF2YG-100.0 | 100.0 | 50.0 | |
Unit: mm
5
Price List
※ All prices are per meter (excluding tax).
※ For custom-made products and sizes not listed in the price list, please contact us.
※ For custom-made products and sizes not listed in the price list, please contact us.
| Part No. | Pre-shrinkage Inner Diameter (φ) | 1 piece (m) | List Price | 10 pieces | 50 pieces | 100 pieces |
|---|---|---|---|---|---|---|
| SZF2YG-2 (1m) | 2.0 | 1 | 195 | 176 | 148 | 98 |
| SZF2YG-3 (1m) | 3.0 | 1 | 195 | 176 | 148 | 98 |
| SZF2YG-4 (1m) | 4.0 | 1 | 280 | 252 | 211 | 141 |
| SZF2YG-5 (1m) | 5.0 | 1 | 306 | 277 | 230 | 154 |
| SZF2YG-6 (1m) | 6.0 | 1 | 354 | 319 | 266 | 178 |
| SZF2YG-8 (1m) | 8.0 | 1 | 444 | 400 | 333 | 223 |
| SZF2YG-10 (1m) | 10.0 | 1 | 538 | 486 | 404 | 270 |
| SZF2YG-12 (1m) | 12.0 | 1 | 659 | 594 | 495 | 330 |
| SZF2YG-16 (1m) | 16.0 | 1 | 1,103 | 993 | 828 | 552 |
| SZF2YG-20 (1m) | 20.0 | 1 | 1,435 | 1,292 | 1,076 | 718 |
| SZF2YG-25 (1m) | 25.0 | 1 | 2,052 | 1,847 | 1,539 | 1,027 |
| SZF2YG-30 (1m) | 30.0 | 1 | 2,379 | 2,141 | 1,785 | 1,190 |
Inquire about this product / Request a sample
Our expert staff will provide thorough support, from consultations on size selection to custom manufacturing.
