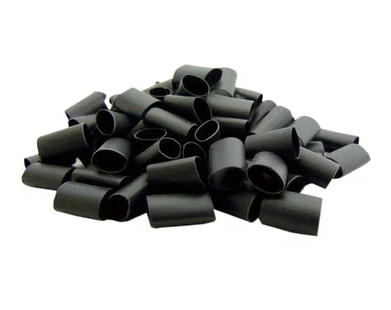

UL Heat Shrink Tubing Cutting Service Black [SZF2]
UL Heat Shrink Tubing Cutting Service Black [SZF2]

    UL Heat Shrink Tubing Cutting Service Black [SZF2]

    $19.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:
    Heat Shrink Tube / Cutting Service

    Ready to use straight out of the bag.
    Fixed length cut products from 1.5φ to 10φ and 5mm to 50mm, available immediately from 1 bag.

    1

    Features

    Cutting Service Our recommended heat shrink tubing is available in highly versatile fixed-length cuts.
    Improved Work Efficiency No need to cut yourself; ready to use straight out of the bag.
    Lineup Sizes: 1.5φ to 10.0φ / Lengths: 5mm to 50mm / Color: Black only
    ■ Sales Information
    • Available for purchase in units of 1 bag.
    • Please refer to the price list for details.
    ■ Related Products
    📩 Inquire about this product Request Sample/Quote
    2

    Specifications

    Material Polyolefin
    Shrinkage Start Temp. 70°C (Full shrinkage: 110°C)
    Operating Temp. Range -55°C to 125°C
    Shrinkage Ratio 2:1
    Standard Color Black
    3

    Size List

    Heat Shrink Tube Cutting Service Structure Diagram
    ※ Please note that D indicates the inner diameter of the tube, not the flattened width.
    Product No. Before Shrinkage
    D Inner Diameter (mm)    		 After Shrinkage
    D1 Inner Diameter (mm) T Wall Thickness (mm)
    SZF2-1.5B 1.5 0.75 0.33
    SZF2-2.0B 2.0 1.0 0.42
    SZF2-3.0B 3.0 1.5 0.42
    SZF2-4.0B 4.0 2.0 0.44
    SZF2-5.0B 5.0 2.5 0.54
    SZF2-6.0B 6.0 3.0 0.54
    SZF2-8.0B 8.0 4.0
    SZF2-10.0B 10.0 5.0

    Unit: mm

    4

    Price List

    ※ All prices are per bag (excluding tax). Available for purchase in units of 1 bag.
    ※ Please refer to the table below for details on cut lengths (L dimension).
    Product No. Cut Length L (mm)
    5 10 15 20 30 40 50
    Quantity per bag 2,000 1,000 670 500 340 250 200
    SZF2-1.5B 2,640 1,760 1,430 1,430 1,430 1,540 1,540
    SZF2-2B 2,640 1,760 1,430 1,430 1,540 1,540 1,540
    SZF2-3B 2,860 1,870 1,760 1,540 1,650 1,650 1,650
    SZF2-4B 2,860 1,870 1,760 1,540 1,650 1,650 1,650
    SZF2-5B 2,860 1,870 1,760 1,540 1,650 1,650 1,650
    SZF2-6B 3,300 1,980 1,760 1,760 1,760 1,760 1,760
    SZF2-8B 4,840 2,860 2,310 2,310 2,200 2,200 2,200
    SZF2-10B 4,840 2,860 2,310 2,310 2,200 2,200 2,200

    Inquire about this product / Request a sample

    Our expert staff will provide thorough support, including consultations on sizes and cut lengths.

    📩 Inquiry Form Request Sample/Quote
