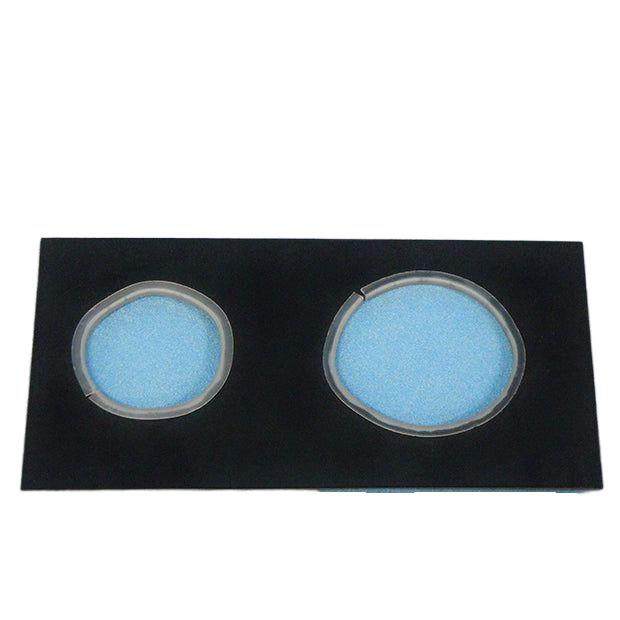

Soft Edging [SE]
Soft Edging [SE]

    Soft Edging [SE]

    $4.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:
    1. Features and Track Record 2. Document Downloads 3. Specifications 4. Sizes 5. Price List
    Soft Edging / Soft Edging SE Series

    Snap-in type, no adhesive required, also suitable for curved sections. Compatible with panel thicknesses from 0.6 to 4.8mm.
    For edge protection of distribution boards, machine tools, acrylic panels, and commercial facility fixtures. Available for purchase from 5m.

    1

    Features and Track Record

    Snap-in type, no adhesive required Simply snap it in to complete installation. No adhesive is required, allowing for installation on curved and circular shapes. Extremely flexible material can conform to complex shapes.
    0.6-4.8mm compatible, wide range design A total of 5 sizes are available, compatible with panel thicknesses from 0.6 to 4.8mm. Each size has a wide adaptation range, so one item can cover a certain range of sizes.
    Wide range of applications Sheet metal edge protection for distribution boards and machine tools, edge protection for product cases and racks, edge protection for splash guard panels and acrylic panels, etc.
    📊 Case Study
    Manufacturer adopted by
    Key box manufacturer
    Situation before adoption
    From 2017. The edges of the key box housing were sharp, raising concerns about injury risk upon contact.
    Effect of adoption
    Soft edging was delivered cut to specified lengths. By simply attaching it to the customer's product, the edges of the housing were protected.
    ＊For more detailed case studies and effects, please contact us →
    ■ Sales
    • Available for purchase from 5m
    • Custom production: special sizes, adhesive/slit processing, custom length cutting
    ■ Track Record
    • Edge protection for splash guard panels and acrylic panels
    • Machine tools, distribution boards, commercial facility fixtures
    📩 Inquire about this product Request sample/quote
    2

    Document Downloads

    📄Catalog (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-containment Certificates (PDF)
    3

    Specifications

    Material Polyethylene (PE)
    Standard UL94 HB
    4

    Size List

    Soft Edging Size Diagram
    Model No. H (mm) T (mm) W (mm) W1 (mm) Applicable Panel Thickness (mm) Packing Unit
    SE-1 3.2 0.7 2.4 0.5 0.6~0.8 50m
    SE-2 4.5 0.8 4.3 0.8 0.9~1.8
    SE-2.5 4.5 0.8 4.3 1.6 1.8~2.7
    SE-3 5.1 0.9 5.5 2.6 2.7~3.8
    SE-4 6.5 1.4 7.2 4.2 4.2~4.8

    Unit: mm Tolerances: ±0.2mm *W=Outer Diameter



    5

    Price List

    ※ All prices are per meter (excluding tax). Available for purchase from 5m. 1 roll = 50m.
    Model No. Max Effective Width (mm) 1 Roll List Price 5m 10m 1 Roll (50m) 5 Rolls (250m)
    SE-1 0.8 50m 99 93 81 68 62
    SE-2 1.8 50m 122 115 99 80 68
    SE-2.5 2.7 50m 124 116 101 85 78
    SE-3 3.8 50m 168 158 137 116 106
    SE-4 4.8 50m 216 202 175 135 126

    Inquire about this product / Request a quote

    Our expert staff will provide thorough support for size selection, custom cutting, special product consultations, and more.

    📩 Inquiry Form Request Sample/Quote
