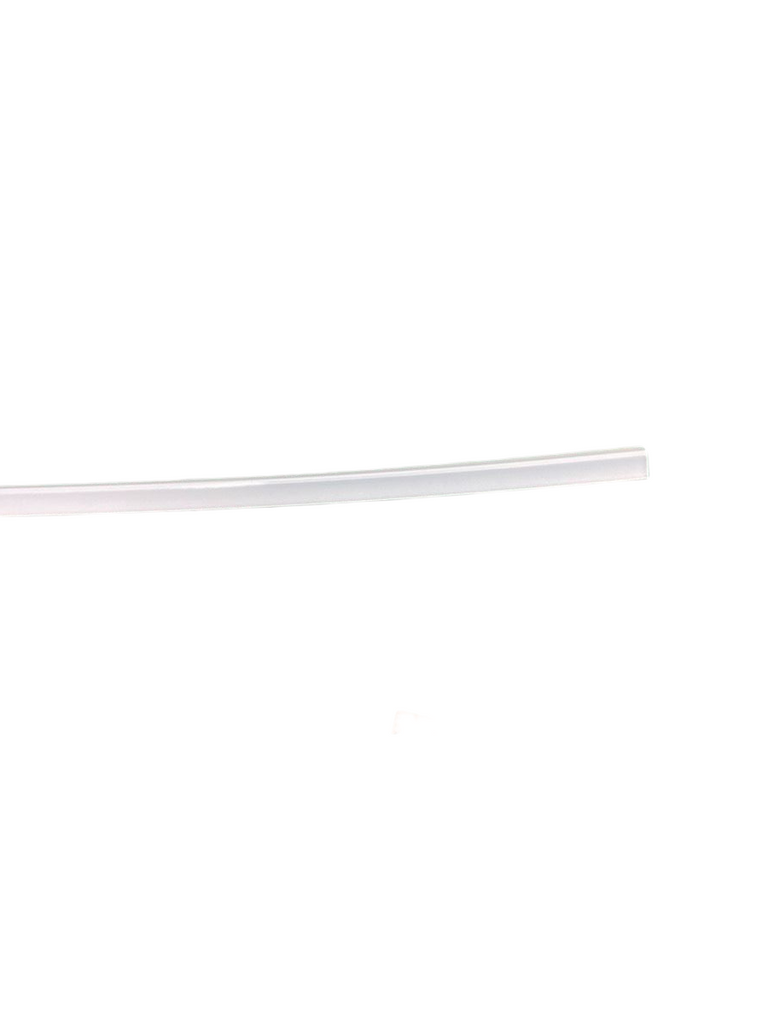

Edge Guard [DE]
Edge Guard [DE]

    Edge Guard [DE]

    $7.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:
    1. Features 2. Download Materials 3. Specifications 4. Size 5. Price List
    Edge Guard / Edge Guard DE Series

    Adhesive-free, snap-on edge protectors. Supports ultra-thin 0.8mm thickness.
    Protects cut edges of sheet metal and panels. Proven track record in machine tools, distribution boards, and commercial facilities.

    1

    Features

    No adhesive, just snap on No adhesive is required, making it easy to attach to enclosures and other objects. An edge protector that can be used by simply fitting it onto the cut edges of sheet metal or panels.
    Supports ultra-thin 0.8mm thickness Compatible with a wide range of panel thicknesses, from ultra-thin 0.8mm, in response to the trend of thinner panels. Optimized structure for attachment to straight sections.
    Cut-to-size available, custom orders Sold in 1m units. Cut-to-size according to desired length is available as a custom order.
    ■ Sales
    • Purchase in units of 5, starting from 1m x 5 pieces
    • Custom orders: Cut-to-size according to desired length
    ■ Track Record
    • Machine tools, distribution boards
    • Commercial facilities, etc.
    📩 Inquire about this product Request sample/quote
    2

    Download Materials

    📄Catalog (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-Containment Certificates (PDF)
    3

    Specifications

    Material Nylon 6
    Standard UL94 HB
    4

    Size List

    エッジガード サイズ図
    Model Number Applicable Panel Thickness (mm) W(mm) W1(mm) W2(mm) T(mm) H(mm)
    DE-010 0.8〜1.0 1.2 0.5 3.3 1 5
    DE-012 1.0〜1.2 1.3 0.6 3.3 1 5
    DE-016 1.2〜1.6 1.7 1.0 3.7 1 5
    DE-024 1.6〜2.3 2.4 1.2 4.4 1 5
    DE-032 2.3〜3.2 3.3 1.5 5.3 1 5

    Tolerance ±0.1mm Unit: mm

    5

    Price List

    ※ All prices are per 1 piece (1m) (excluding tax). Purchase in units of 5.⇒How to read the price list
    ※ Price revision: March 31, 2011
    Model Number Effective Max Width (mm) List Price 5 pieces 10 pieces 50 pieces 100 pieces
    DE-010 1 180 177 170 116 108
    DE-012 1.2 150 147 141 96 90
    DE-016 1.6 163 160 153 104 98
    DE-024 2.3 173 170 163 111 104
    DE-032 3.2 200 196 188 128 120

    Inquire about this product / Request a quote

    Our expert staff will provide thorough support for size selection, custom cutting, and quantity consultations.

    📩 Inquiry Form Request sample/quote
