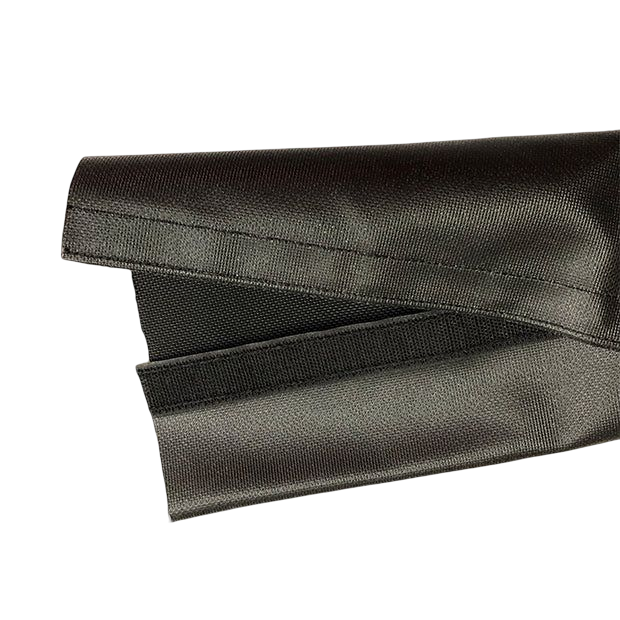

Hydraulic hose protective cover, large diameter type [DM]
$0.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: About a month
- Barcode:
Hydraulic Hose Cover Large Diameter / 油圧ホース保護カバー 大口径タイプ
Abrasion-resistant, oil-resistant, water-repellent. Post-installation protective tube made of 6-polyamide.
Large diameter lineup exceeding 100φ. Can be cut with scissors without fraying.
1
Features and Applications
| Abrasion-resistant, oil-resistant, water-repellent treatment | Excellent abrasion resistance, ideal for strong impacts and outdoor use. Oil-resistant (hydraulic oil, lubricating oil) and water-repellent treated surface. |
|---|---|
| 25mm wide Velcro, long lifespan | The Velcro is 25mm wide, wider than usual, allowing for long-term use even with repeated opening and closing. Wiring can also be branched. |
| Scissors cut, no fraying | Can be cut with scissors and does not fray. Suitable for moving parts and short lengths of use. |
| Large diameter lineup, custom manufacturing | Lineup includes large diameters exceeding 100φ. Due to overseas custom manufacturing, delivery time is 2-3 months. |
📊 Application Case Study
Manufacturer
Construction machinery manufacturerSituation before adoption
From 2024 onwards. There was a need for a large diameter cover exceeding 100φ with higher durability than conventional hydraulic hose covers (nylon sleeve, Sany Hose). Products that fray easily at the ends when used for short, movable lengths were unsuitable.Effect of adoption
DM tube has a large diameter lineup exceeding 100φ and does not fray when cut with scissors, making it a unique product that was adopted.■ Sales
- Custom-ordered manufacturing (2-3 months delivery time, overseas manufacturing)
- Can be connected to specified lengths
- Sewing processes such as Velcro reinforcement also available
■ Application Cases
- Protection and anti-scattering for high-pressure hoses and rubber hoses
- FA equipment, robots, power machinery, marine equipment
- Cleaning robots, etc.
2
Download Materials
3
Specifications
| Material | 6 Polyamide |
|---|---|
| Operating Temperature Range | -50℃ to 125℃ |
| Melting Point | 210℃ |
| Color | Black |
| Thickness | 0.7mm |
4
Size List
⚠️ As this is an overseas custom-manufactured product, the delivery time will be 2-3 months. Please inquire for prices and delivery times.
| Part Number | Natural Diameter (approx.) (mm) | Packaging Unit (m/roll) |
|---|---|---|
| DM-25 | 25.4 | 45 |
| DM-40 | 38.1 | |
| DM-50 | 50.8 | |
| DM-65 | 63.5 | |
| DM-80 | 76.2 | |
| DM-90 | 88.9 | |
| DM-100 | 101.6 | |
| DM-125 | 114.3 | |
| DM-150 | 152.4 | |
| DM-200 | 203.4 |
Unit: mm / Thickness: 0.7mm
Inquire about this product / Request a quotation
As this is a custom-manufactured product, please feel free to consult us about size, quantity, and specifications. Our specialized staff will provide careful support.
