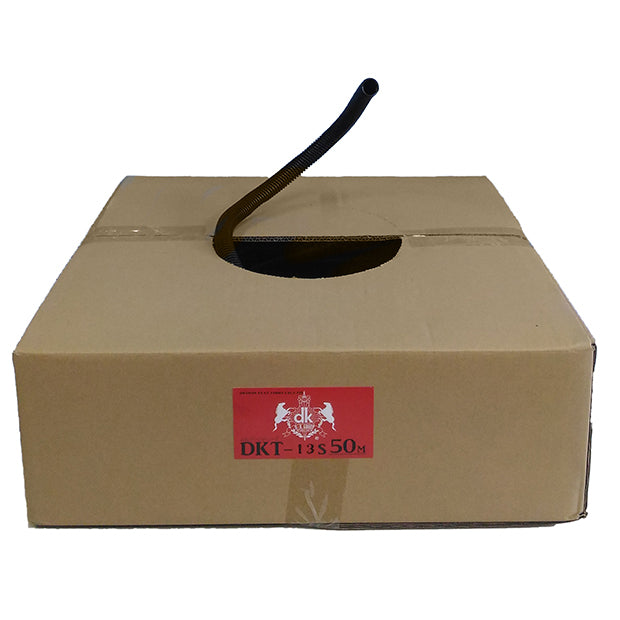

Slit corrugated tube [DKT-S]
$2.00
Tax included.
Shipping calculated at checkout.
在庫: あり
As of April 17th, the DKT-5S-100/DKT-7S-50/DKT-10S-50/DKT-15S-50/DKT-19S-50/DKT-32S-30 are out of stock and lead time is approximately one month.
納期: 1～3日以内に出荷
- Barcode:
1
Features
| Easy to retrofit with longitudinal slit | The longitudinal slit makes it easy to store wires, and also easy to retrofit and remove. |
|---|---|
| Moderate softness and black color | Moderate flexibility makes it easy to use, and the standard color is black. Custom colors are available upon order. |
| Easy to use with box packaging | Box packaging makes inventory management easy and prevents tangling. 5m rolls are bagged, and full rolls are box-packaged. |
| Applications | Wiring protection in offices and equipment, automotive manufacturers, general household wiring protection, and pet cord biting prevention. |
■ Sales
- Available from 5m for each size
- Custom colors also available upon order
■ Packaging
- 5m rolls are bagged
- Full rolls are in dedicated box packaging
2
Document Downloads
Catalog (PDF)
Product Feature Page
Packaging Specifications (Box Size/Weight)
Product Selection Chart (PDF)
RoHS2 Certificate (PDF)
Other Non-Inclusion Certificates (PDF)
3
Specifications
| Material | Flame Retardant Polypropylene |
|---|---|
| Operating Temperature Range | -40℃ to 110℃ |
| Standard Color | Black (Custom colors available upon order) |
4
Size List
| Product No. | Inner Diameter ID (mm) | Outer Diameter OD (mm) | Wall Thickness T (mm) | W (mm) | L (mm) | Length (m/roll) |
|---|---|---|---|---|---|---|
| DKT-5S | 5.2±0.4 | 7.4±0.4 | 0.27±0.1 | 1.5±0.2 | 2.1±0.2 | 100 |
| DKT-7S | 7.0±0.4 | 10.0±0.4 | 0.27±0.1 | 1.95±0.2 | 2.7±0.2 | 50 |
| DKT-10S | 11.2±0.4 | 14.0±0.4 | 0.3±0.1 | 1.95±0.2 | 2.7±0.2 | 50 |
| DKT-13S | 13.2±0.4 | 17±0.4 | 0.35±0.1 | 2.3±0.2 | 3.2±0.2 | 50 |
| DKT-15S | 15.1±0.4 | 19.7±0.4 | 0.35±0.1 | 2.3±0.2 | 3.2±0.2 | 50 |
| DKT-19S | 19±0.5 | 23.5±0.5 | 0.4±0.1 | 2.3±0.2 | 3.2±0.2 | 50 |
| DKT-22S | 22±0.5 | 26.8±0.5 | 0.4±0.1 | 2.3±0.2 | 3.2±0.2 | 50 |
| DKT-25S | 25.5±0.5 | 32.0±0.5 | 0.4±0.1 | 2.75±0.2 | 4.5±0.2 | 50 |
| DKT-28S | 29.0±0.6 | 34.5±0.6 | 0.45±0.1 | 2.35±0.2 | 3.5±0.2 | 35 |
| DKT-32S | 32±0.6 | 37.0±0.6 | 0.45±0.1 | 2.35±0.2 | 3.3±0.2 | 30 |
Units: mm / *Size revision: March 15, 2017
5
Price List
* Prices are per meter (excluding tax). Sold in minimum purchase units. ⇒How to read the price list
* 5m rolls are bagged, and full rolls are in dedicated box packaging. Price revision: March 15, 2017
* 5m rolls are bagged, and full rolls are in dedicated box packaging. Price revision: March 15, 2017
| Product No. | Inner Diameter (mm) | 1 Roll (m) | List Price | 5m | 100m |
|---|---|---|---|---|---|
| DKT-5S | 5.2±0.4 | 100 | 53 | 52 | 37 |
| Product No. | Inner Diameter (mm) | 1 Roll (m) | List Price | 5m | 50m |
|---|---|---|---|---|---|
| DKT-7S | 7.0±0.4 | 50 | 66 | 64 | 50 |
| DKT-10S | 11.2±0.4 | 50 | 84 | 82 | 64 |
| Product No. | Inner Diameter (mm) | 1 Roll (m) | List Price | 5m | 50m |
|---|---|---|---|---|---|
| DKT-13S | 13.2±0.4 | 50 | 133 | 130 | 102 |
| DKT-15S | 15.1±0.4 | 50 | 141 | 137 | 107 |
| Product No. | Inner Diameter (mm) | 1 Roll (m) | List Price | 5m | 50m |
|---|---|---|---|---|---|
| DKT-19S | 19.0±0.5 | 50 | 170 | 166 | 130 |
| DKT-22S | 22.0±0.5 | 50 | 180 | 177 | 156 |
| DKT-25S | 25.5±0.5 | 50 | 190 | 186 | 165 |
| Product No. | Inner Diameter (mm) | 1 Roll (m) | List Price | 5m | 30m |
|---|---|---|---|---|---|
| DKT-32S | 32±0.6 | 30 | 375 | 371 | 327 |
* For DKT-28S prices, please inquire.
Inquire about this product / Request a sample
Our expert staff will provide thorough support for size selection, custom colors, quantity consultations, and more.
