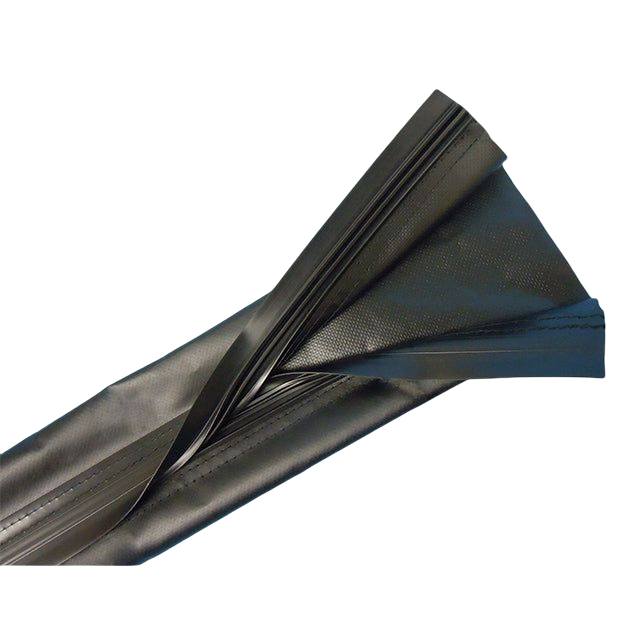

Twin rail retractable wiring protection tube [TRX]
$4.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: Approximately 1-2 weeks from order
- Barcode:
Twin Rail Protective Tube / Twin Rail Openable Wiring Protection Tube
Tool-free twin rail opening/closing. Excellent dust and splash protection, strong binding force preventing it from opening even when bent. Can be cut with scissors, easy to add wires midway and branch off.
1
Features and Track Record
| Twin Rail Opening/Closing - No Tools Required | Twin rails snap together for easy opening and closing without tools. Effective for long distances. Easy to add or branch off wires midway. |
|---|---|
| Excellent Dust and Splash Protection | The interlocking parts provide excellent dust and splash protection. Strong binding force prevents it from opening naturally even in curved sections. |
| Can be cut with scissors | Can be cut to any length with scissors. Easy to use on site. |
| Industries Adopted | Wiring protection for industrial equipment, audio equipment, etc. For tool-free construction in semiconductor manufacturing equipment. |
📊 Adoption Examples
Manufacturer Adopted
Semiconductor manufacturing equipment manufacturerSituation Before Adoption
Since 2010. The task of bundling multiple wires occurred in multiple processes and factories. They were looking for a product that did not require tool management, could be installed manually, and did not generate dust.Effect of Adoption
TRX employs snap-fit rails and can be installed manually, eliminating the need for tool and method management, thereby streamlining work management across multiple processes and external factories.■ Sales
- Available for purchase from 1m
- Custom colors can be produced to order
■ Track Record
- Industrial equipment, semiconductor manufacturing equipment
2
Download Materials
Catalog (PDF) Product Selection Chart (PDF) RoHS2 Certificate (PDF) Other Non-Containment Certificates (PDF)
3
Specifications
| Material (Sheet part) | PVC sheet with polyester cross |
|---|---|
| Material (Rail part) | PVC |
| Flame Retardancy | UL94 V-0 equivalent |
| Operating Temperature Range | -5℃ to 60℃ |
4
Size List
| Part No. | D±3(mm) | W±3(mm) | 1 Roll (m) |
|---|---|---|---|
| TRX-20 | 20 | 97 | 25 |
| TRX-25 | 25 | 104 | |
| TRX-30 | 30 | 125 | |
| TRX-40 | 40 | 157 | |
| TRX-50 | 50 | 187 | |
| TRX-60 | 60 | 224 | |
| TRX-80 | 80 | 288 | |
| TRX-110 | 110 | 378 |
Unit: mm / D=Inner Diameter, W=Expanded Width
5
Price List
※ All prices are per meter (excluding tax).
| Part No. | Inner Diameter ±3 (mm) | 1 Roll (m) | List Price | 1m | 5m | 10m | 25m (1 roll) |
|---|---|---|---|---|---|---|---|
| TRX-20 | 20 | 25 | 560 | 496 | 448 | 400 | 320 |
| TRX-25 | 25 | 25 | 578 | 512 | 462 | 413 | 330 |
| TRX-30 | 30 | 25 | 606 | 537 | 485 | 433 | 346 |
| TRX-40 | 40 | 25 | 634 | 562 | 507 | 453 | 362 |
| TRX-50 | 50 | 25 | 665 | 589 | 532 | 475 | 380 |
| TRX-60 | 60 | 25 | 721 | 639 | 577 | 515 | 412 |
| TRX-80 | 80 | 25 | 784 | 695 | 628 | 560 | 448 |
| TRX-110 | 110 | 25 | 900 | 797 | 720 | 643 | 514 |
Inquire about this product / Request sample
Our expert staff will provide detailed support for size selection, custom colors, dust/splash proofing applications, and more.
