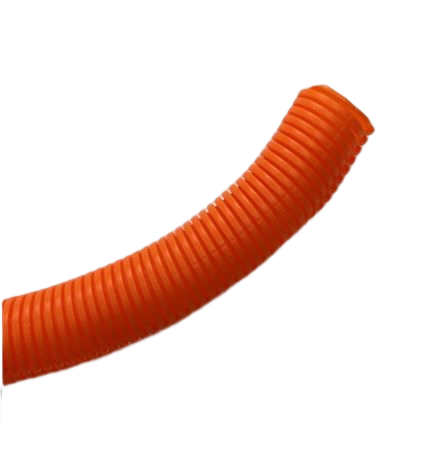

Slitted corrugated tube, orange [DKT-S-OR]

Slitted corrugated tube, orange [DKT-S-OR]

$7.00

Tax included. Shipping calculated at checkout.

在庫: あり

As of March 3rd: DKT-19S-OR-100/DKT-25S-OR-100 are out of stock and will take approximately one month for delivery.

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

1. Features 2. Document Downloads 3. Specifications 4. Sizes 5. Price List

Features

EV Vehicle / High-Voltage Cable Protection	Used for protecting EV vehicle harnesses and high-voltage cables. Orange color for easy identification.
Longitudinal Slit / Easy Post-Installation	The longitudinal slit makes it easy to store wires. Easy to install and remove afterward.
Flame-Retardant PP / RoHS Compliant	Made of flame-retardant polypropylene, RoHS compliant, usable from -40 to 110℃.
Application Examples	EV vehicle harness processing

■ Sales

Available for purchase from 10m (can also be purchased per roll).
*From 2026, rolls will be 50m each, as soon as current stock runs out.

■ Packaging

All sizes come in 50m rolls.
Application Examples: EV vehicle harness processing

📩 Inquire about this product Request Samples/Quote

Document Downloads

📄Catalog (PDF) 📊Product Selection Chart (PDF) ✅RoHS2 Certificate (PDF) 📋Other Non-Inclusion Certificates (PDF)

Specifications

Material	Flame-retardant polypropylene
Standard	RoHS
Operating Temperature Range	-40℃ to 110℃
Standard Color	Orange

Size List

Part Number	Inner Diameter ID (mm)	Outer Diameter OD (mm)	Wall Thickness T (mm)	Packaging (m/roll)
DKT-5S-OR	4.6±0.3	7.0±0.3	0.27±0.05	50
DKT-7S-OR	7.0±0.3	10.0±0.3	0.27±0.05	50
DKT-10S-OR	10.0±0.3	13.0±0.3	0.30±0.06	50
DKT-15S-OR	16.0±0.4	20.0±0.4	0.35±0.08	50
DKT-19S-OR	20.5±0.5	25.0±0.5	0.40±0.08	50
DKT-22S-OR	23.2±0.5	28.5±0.5	0.40±0.08	50
DKT-25S-OR	25.5±0.5	32.0±0.5	0.45±0.10	50

Unit: mm

Price List

※ Prices are per meter (excluding tax). Available for purchase in 10m units.⇒ How to read the price list
※ From 2026, rolls will be changed to 50m each as soon as current stock runs out.

Part Number	1 roll (m)	List Price	10m	1 roll (50m)
DKT-5S-OR	50	120	86	61
DKT-7S-OR	50	139	99	70
DKT-10S-OR	50	154	110	78
DKT-15S-OR	50	245	175	125
DKT-19S-OR	50	368	263	188
DKT-22S-OR	50	417	298	215
DKT-25S-OR	50	592	423	302

Inquire about this product / Request samples

Our expert staff will provide thorough support for size selection, EV harness protection, quantity consultations, and more.

📩 Inquiry Form Request Samples/Quote
